MMATS LSX8000.1D

Part of the MMATS LSX Series — a high-power monoblock Class D amplifier with dual cooling fans and an ULTRA Efficient Heatsink for extreme output. Currently out of stock at the manufacturer.

• 1 x 3100 WRMS @ 4Ω / 1 x 5600 WRMS @ 2Ω / 1 x 8600 WRMS @ 1Ω
• Operating Voltage: 8V–16V | Rated Power: 13.8V
• Efficiency: 76% @ 1-ohm resistive | Damping Factor: >1000
• Frequency Response: 10Hz–22kHz (-3dB) | SNR: 96dB | THD+N: 0.1%

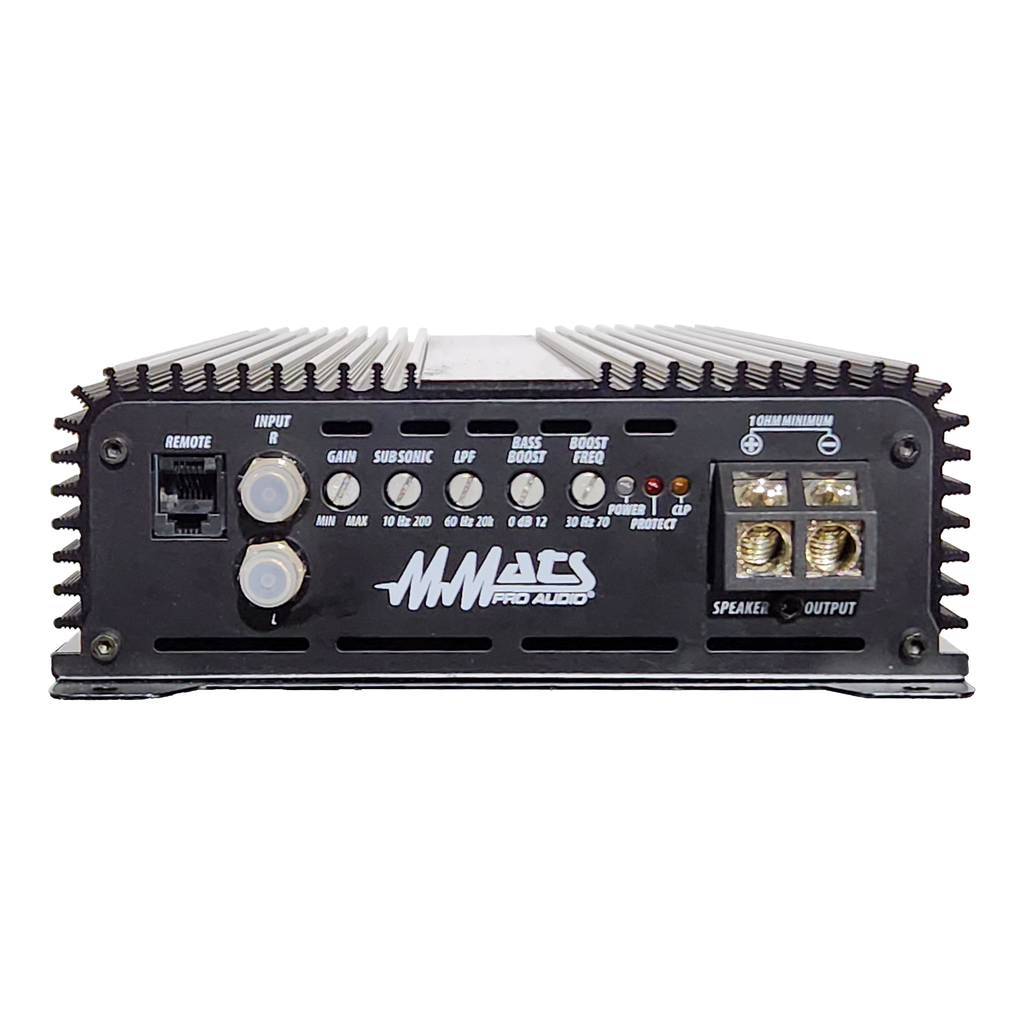

• Gain: .2V–10V | Subsonic Filter: 10Hz–200Hz | LPF: 60Hz–20kHz
• Bass Boost: 0dB–12dB, variable 30Hz–70Hz | Remote Bass Knob included

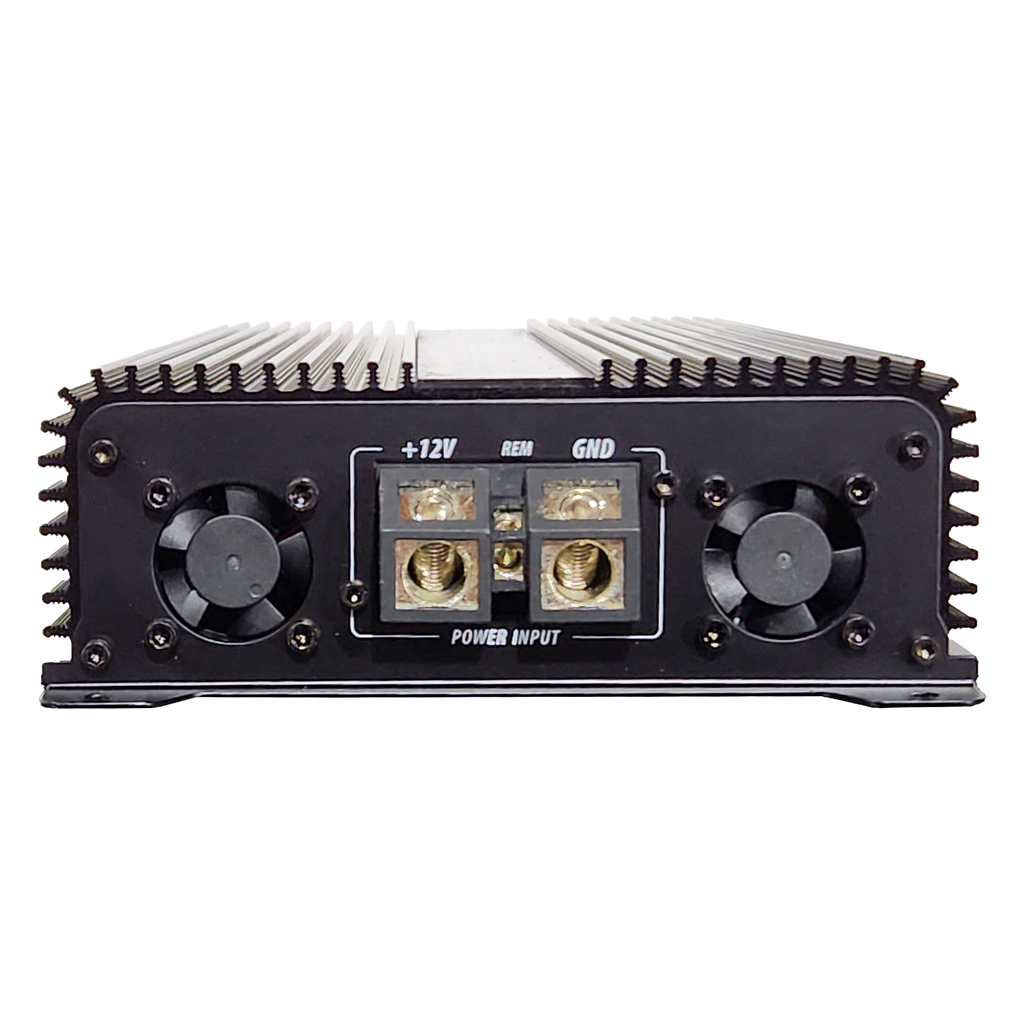

• 1/0-Gauge battery terminal, 8-Gauge speaker terminal, dual cooling fans

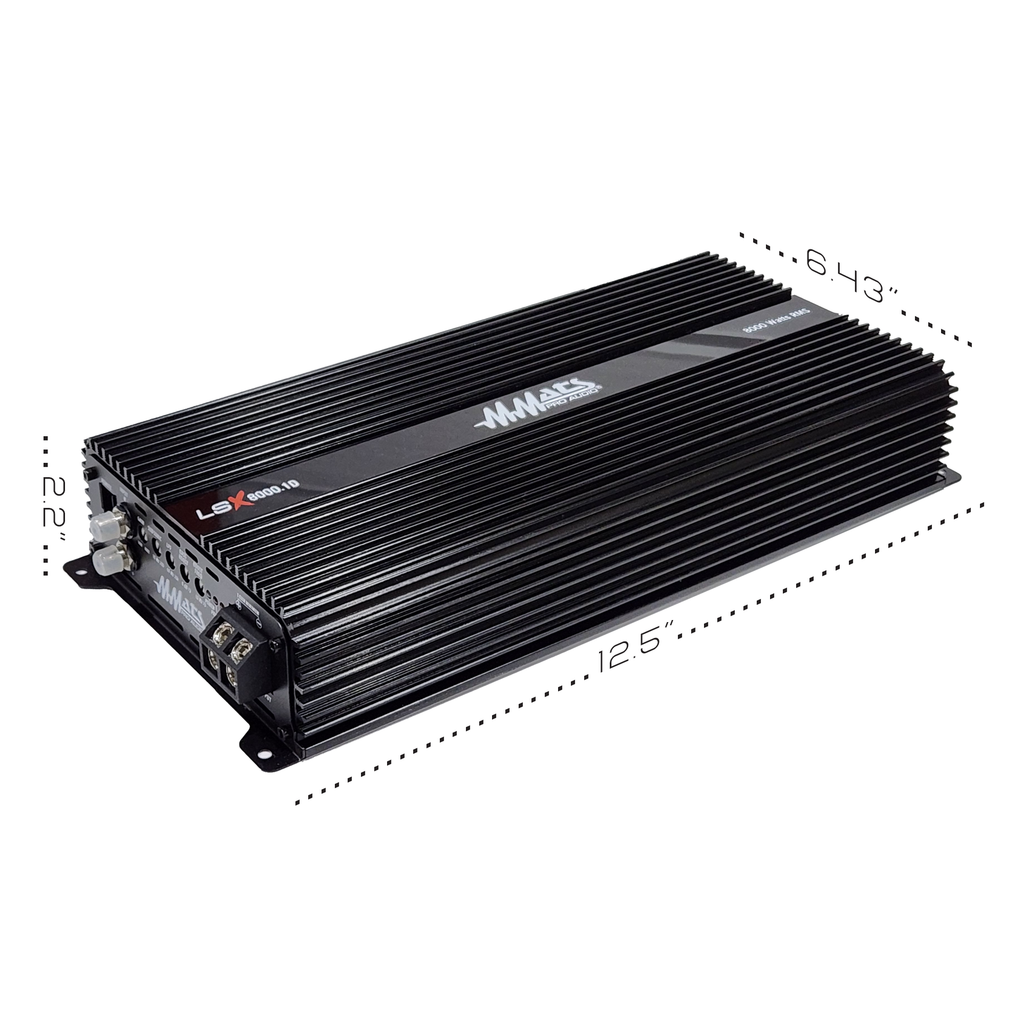

• Dimensions: 12.5" x 6.43" x 2.2"
