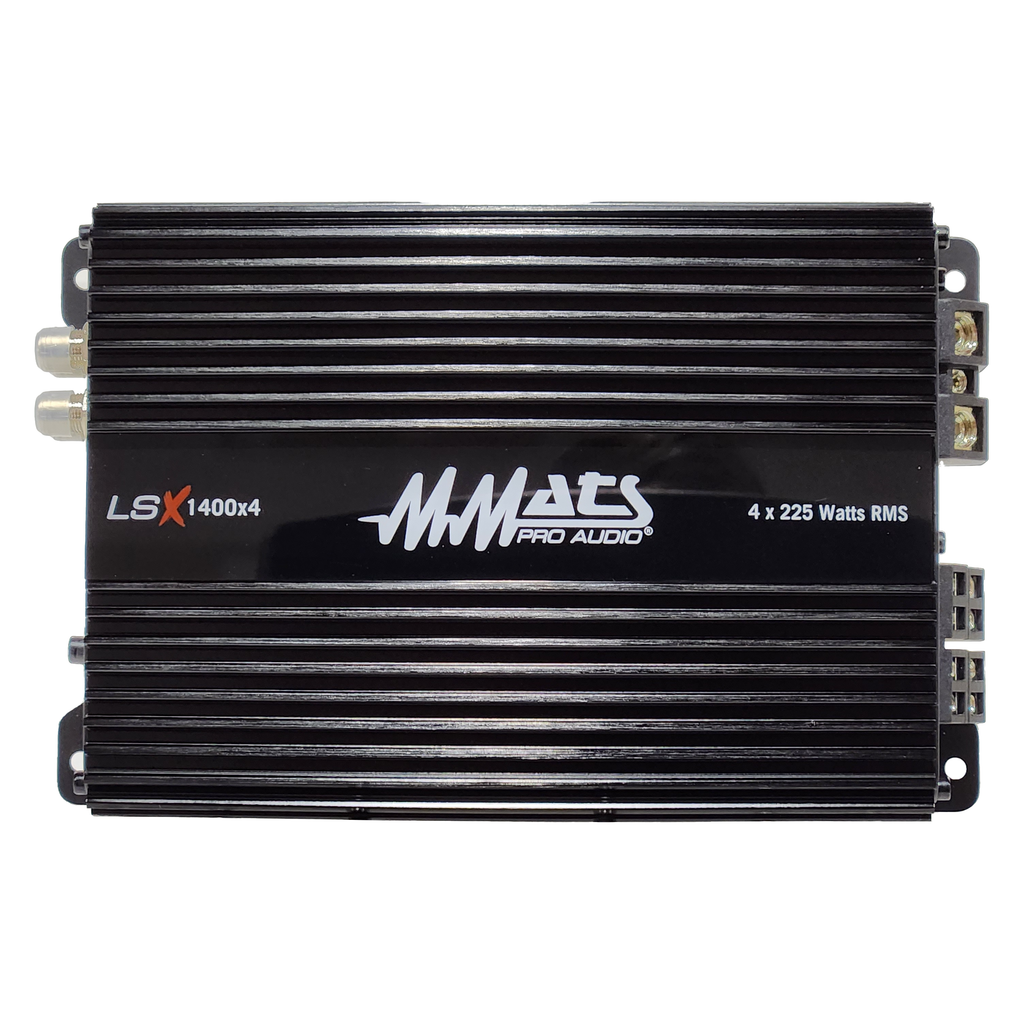

MMATS LSX1400x4

Part of the MMATS LSX Series — a compact 4-channel Class D amplifier engineered for efficient, powerful multi-speaker setups with an ULTRA Efficient Heatsink.

• 4 x 225 WRMS @ 4Ω stereo / 4 x 360 WRMS @ 2Ω stereo / 2 x 720 WRMS @ 4Ω mono
• Operating Voltage: 8V–16V | Rated Voltage: 13.8V
• Efficiency: 86% @ 2-ohm stereo resistive | Damping Factor: >1000
• Frequency Response: 10Hz–22kHz (-3dB) | SNR: 96dB | THD+N: 0.1%
• Gain: .2V–10V | LPF: 20Hz–700Hz | HPF: 200Hz–7kHz (via 10x switch)
• Full-pass if needed; over-current, short, and thermal protection

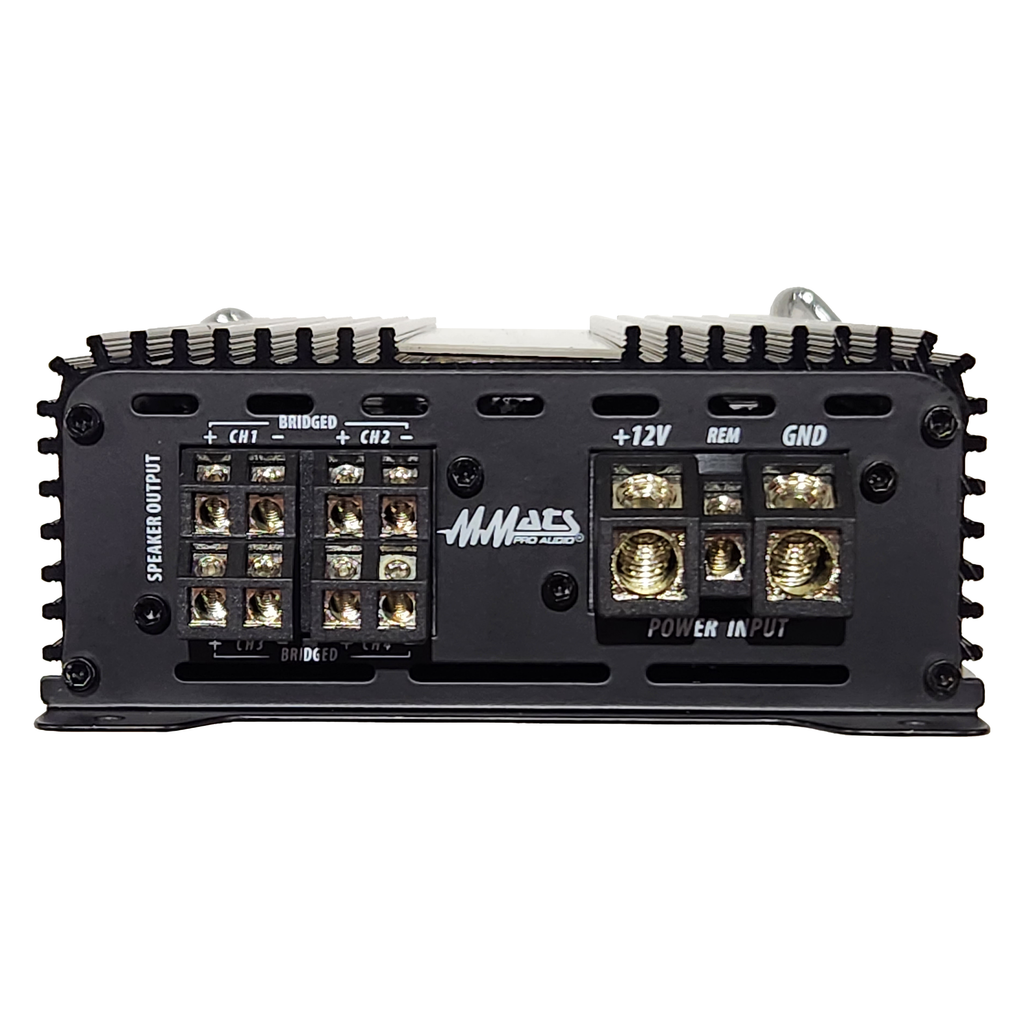

• 4-Gauge battery terminal, 12-Gauge speaker terminal

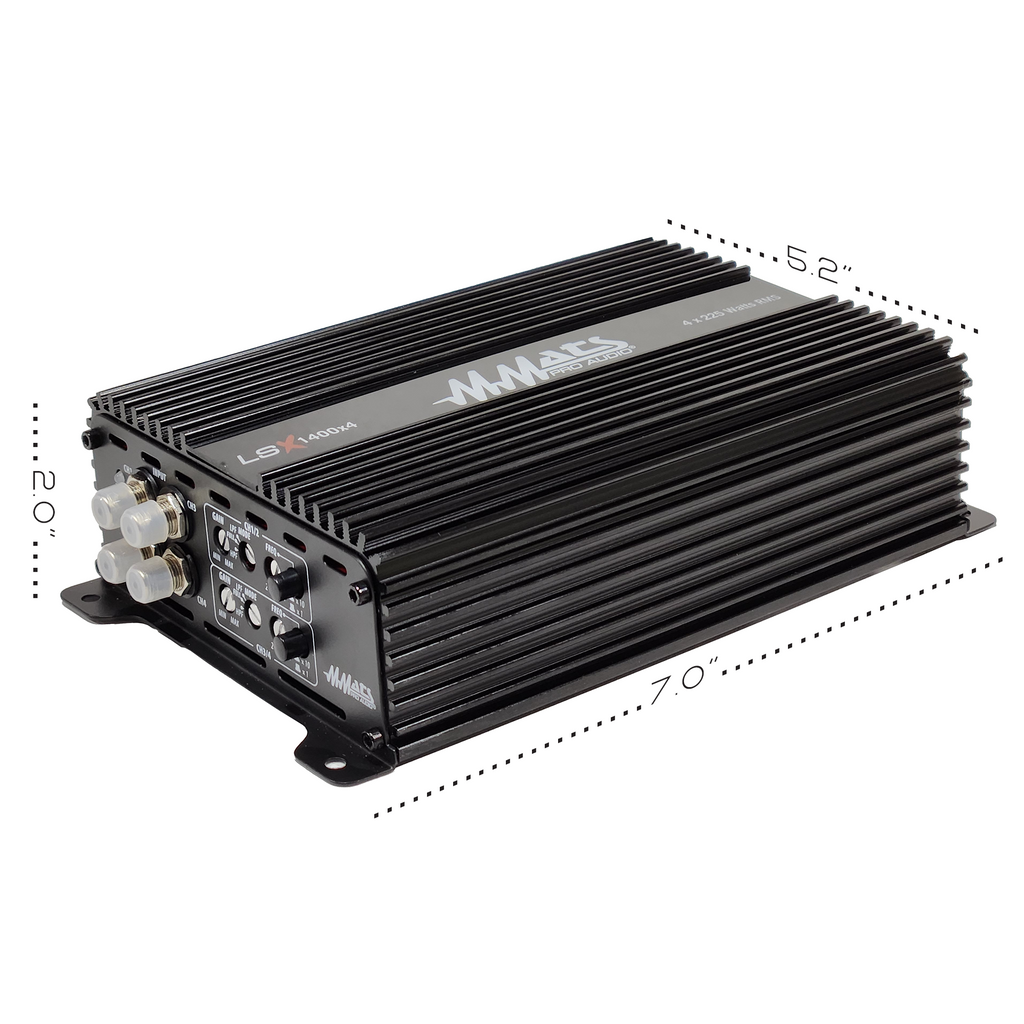

• Dimensions: 7.0" x 5.2" x 2.0"
