DAKOTA DIGITAL GAUGE SET FOR HARLEY-DAVIDSON® TOURING | 1999-2003

Direct plug-in digital instrumentation system for all 1996-2013 Harley Davidson Street Glide, Road Glide, Ultra Classic and CVO touring models.

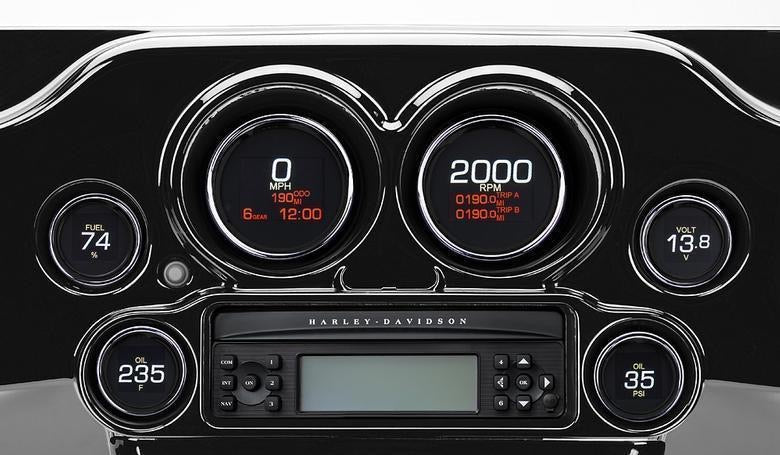

Choose from black or chrome bezels to start, then immerse yourself into the 31 illumination colors; independently select colors for the main gauge readings, message center information and gauge labels, or choose from 12 preset themes! The message center below the main speed and tach readings offer plenty of information and can be configured to show just what the rider wants to see. Gauge display automatically dims for comfortable night time riding and brightens to a high contrast mode for excellent visibility, even in direct sunlight.

Speedometer can be calibrated for custom-gearing situations and allows the user to select MPH or km/H in the setup menu.

The four small gauges can be programed by the rider for their ideal layout; out of the box options include oil pressure, oil temperature, fuel level and voltage, while boost, air suspension pressure and compass heading can be had with the appropriate MBM upgrade modules!

To top it all off, the MLX-8600 series features Bluetooth technology for the available mobile app for both Android and Apple iOS devices. Continently access the setup and customization preferences with your smart phone or tablet!

MLX-8600 series utilizes the stock mounting hardware and "baskets" from the OEM gauges.

• Speedometer 0-250MPH (400km/H)
• Tachometer
• Oil temperature (sender included)
• Oil pressure
• Volts
• Fuel Level
• Gear Position
• Clock
• Odometer
• A & B Trip meters
• Service Meter (miles until next service)
• Performance Meters
  • 1/4 mile Speed and Time
  • 0-60 time
  • High Speed and RPM recall
• Indicators:
  • Turn Signals, High Beam, Cruise Control (MLX-8604 only), Check Engine, Security, ABS
• Machined aluminum housings and bezels
• Choose from chrome or black bezels with non-glare scratch resistant lenses

1996-2003 models use MLX-8696

For applications with two small gauges, use MLX-8496. Call for details!

2004-2013 models use MLX-8604

For applications with two small gauges, use MLX-8404. Call for details!

Dakota Digital Instrument systems are shipped from the factory with "0" miles on the odometer. Odometer can be set by the installer multiple times within the first 100 miles of driving. In the event of an error or oversight, the odometer reading can be corrected at the factory for a charge of $20 (plus shipping). Please contact Dakota Digital to arrange this service.
