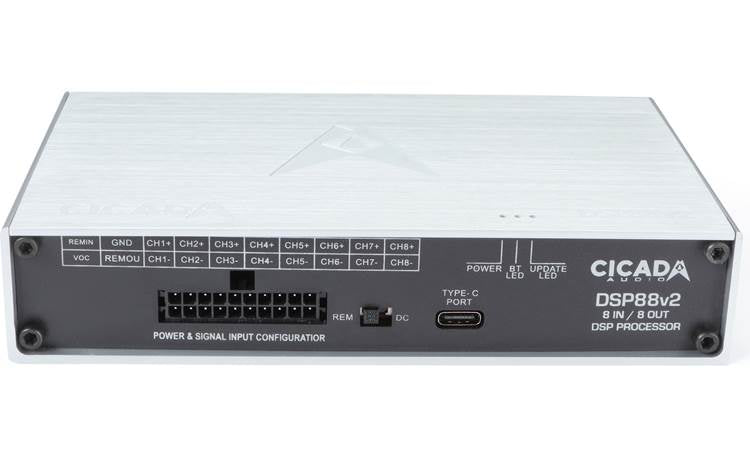

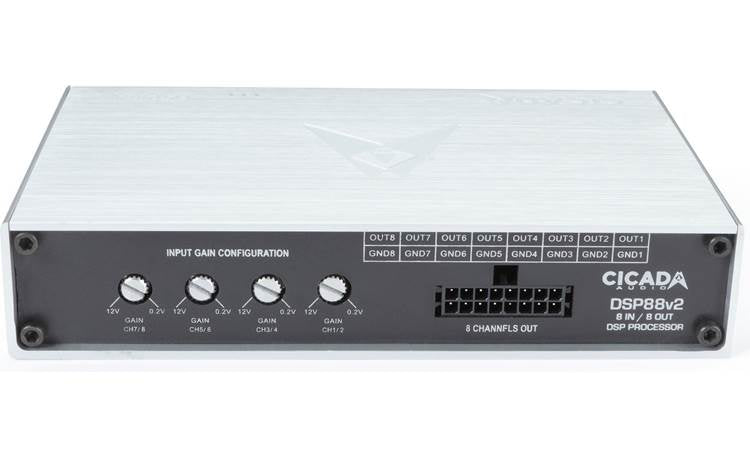

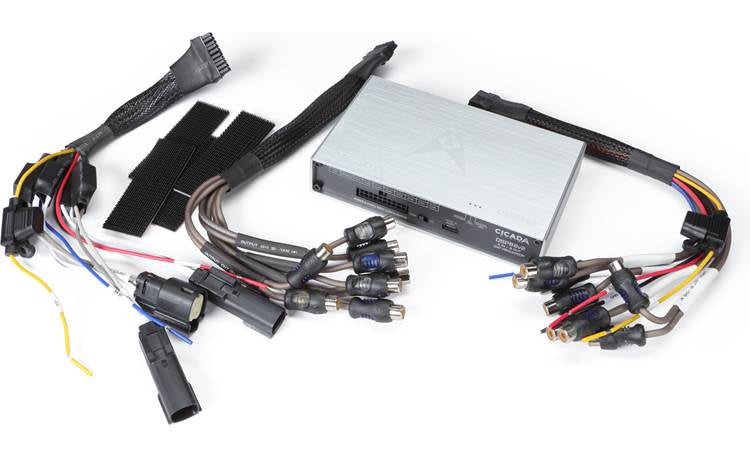

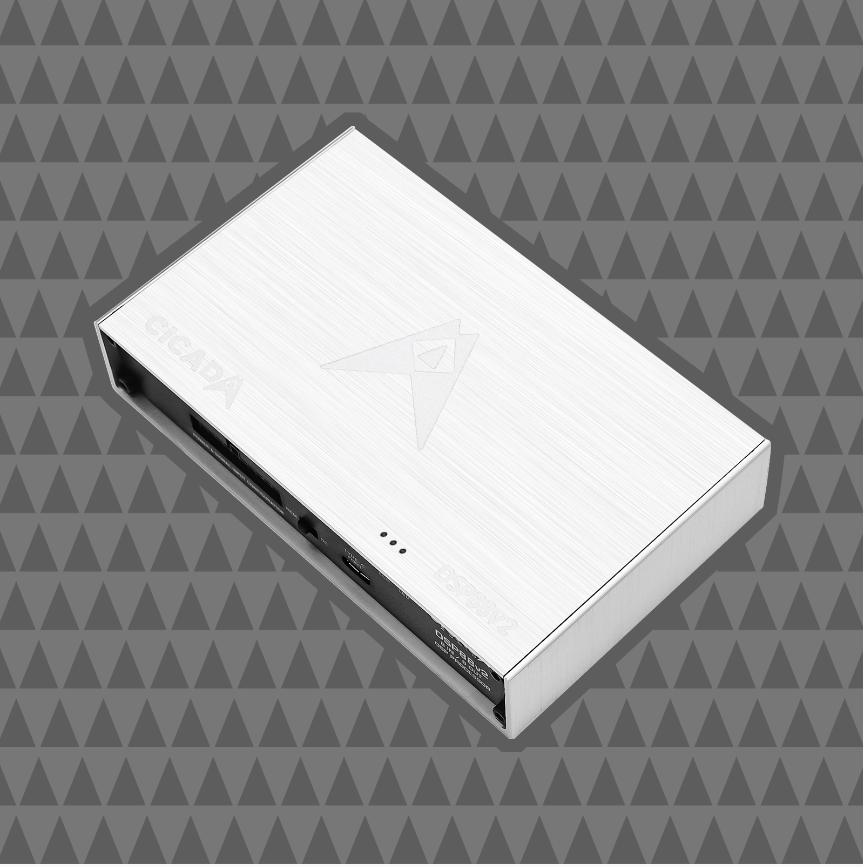

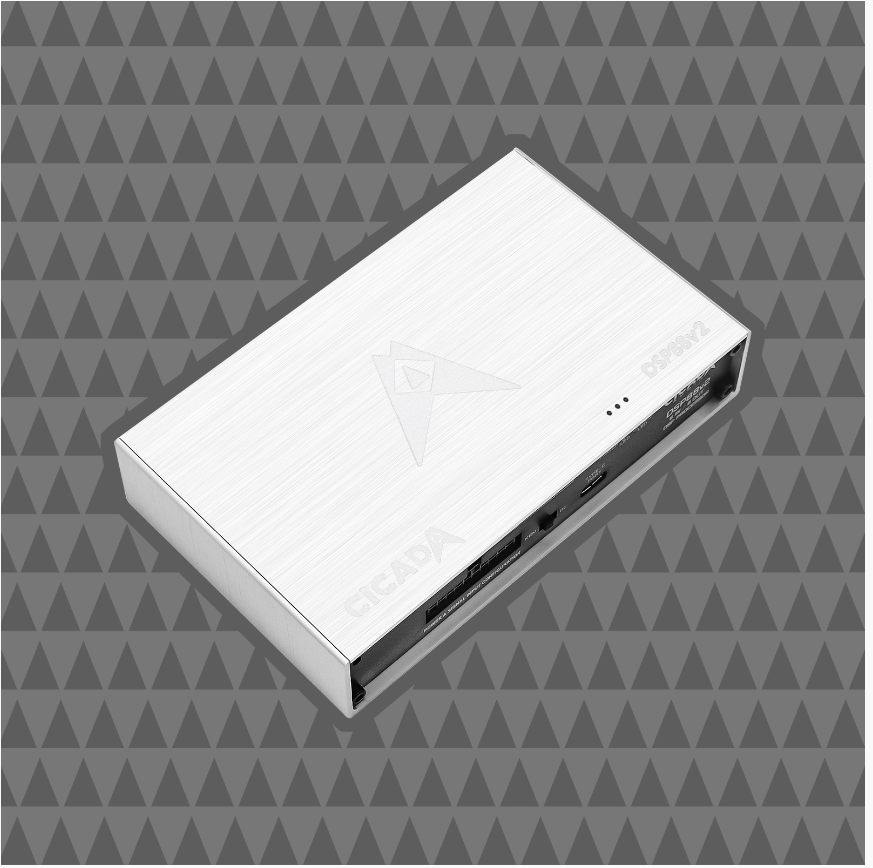

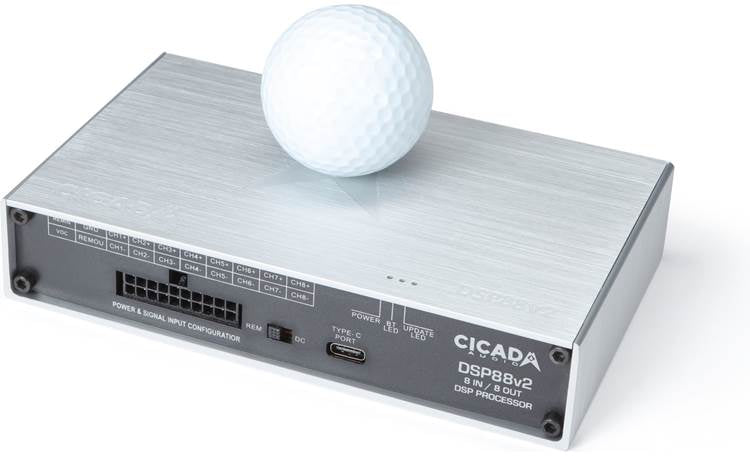

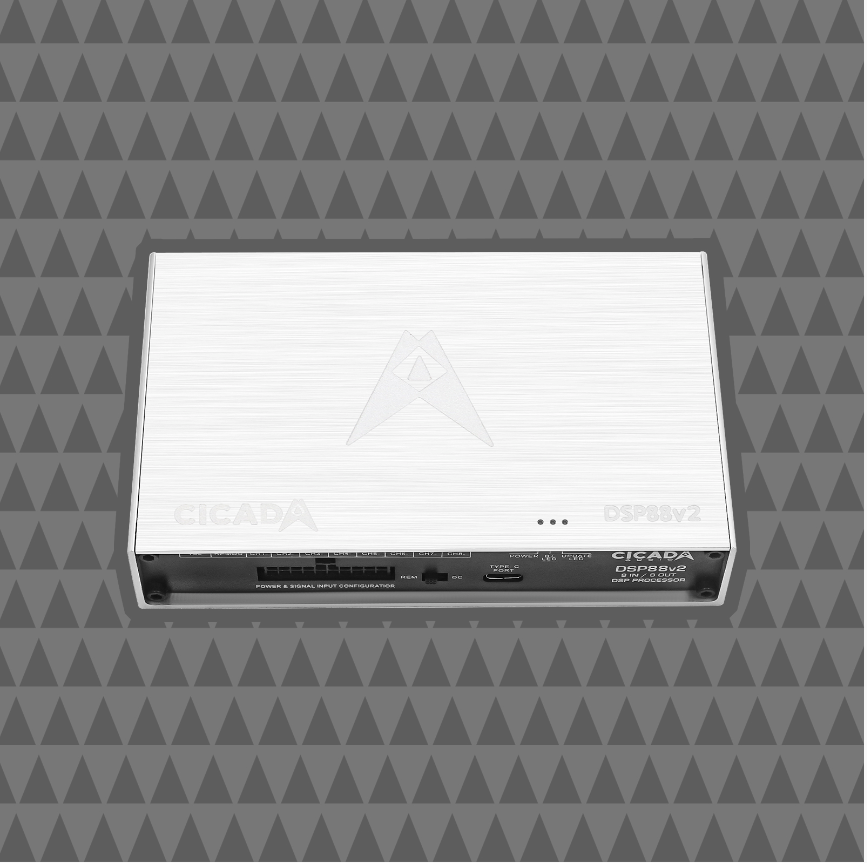

CICADA AUDIO DSP88V2 DIGITAL SOUND PROCESSOR

Cicada DSP88V2 — 8-Channel Digital Sound Processor (8 In / 8 Out)

The DSP88V2 is Cicada's Harley-focused 8-channel digital sound processor — 8 inputs and 8 outputs — and it's one of the biggest upgrades you can make to how your system actually sounds. It cleans up the factory signal, lets you time-align and EQ every speaker, and sums inputs for a proper full-range tune. The compact form factor fits the fairing of virtually any 1998–2024 Harley bagger, and Bluetooth tuning through Cicada's phone, tablet, and PC apps makes dialing it in easy.

Why we recommend it

If you've added amps and speakers but it still doesn't sound right, a DSP is the missing piece. You get 32-bit processing, 24-bit converters, variable crossovers from 20Hz to 10kHz with 6/12/18/24/36/48 dB slopes, and full parametric EQ — total control over your system. You can even save a tune from one DSP88 and load it into another.

Specifications

• 8 high/low-level inputs | 8 RCA outputs
• Frequency Response: 20Hz–20kHz (+/- 0.5dB)
• Input Voltage: 0.02V–12V | Output Voltage: up to 8V | Output Impedance: 200Ω
• DSP: 32-bit, 147 MIPS | DAC/ADC: 24-bit | Dynamic Range: up to 108dB
• Signal-to-Noise: >100 dBA | THD+N: -98dB
• Crossover: variable 20Hz–10kHz, 6/12/18/24/36/48 dB/octave | PEQ: Q 0.05–20
• Operating Voltage: 9–16 VDC | Dimensions: 1.26 x 4.04 x 5.12 in
• Bluetooth DSP tuning and signal summing via Cicada CA DSP app
