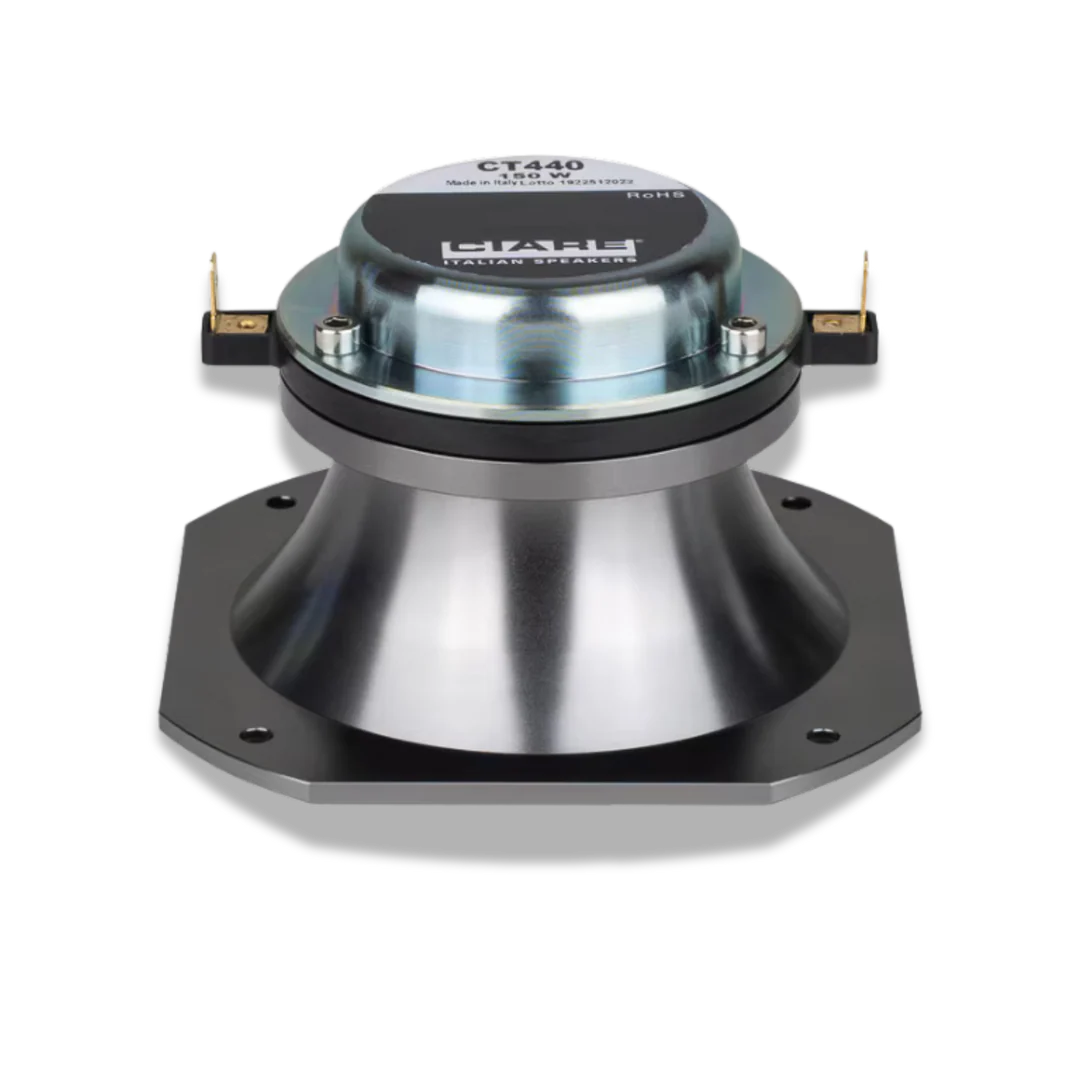

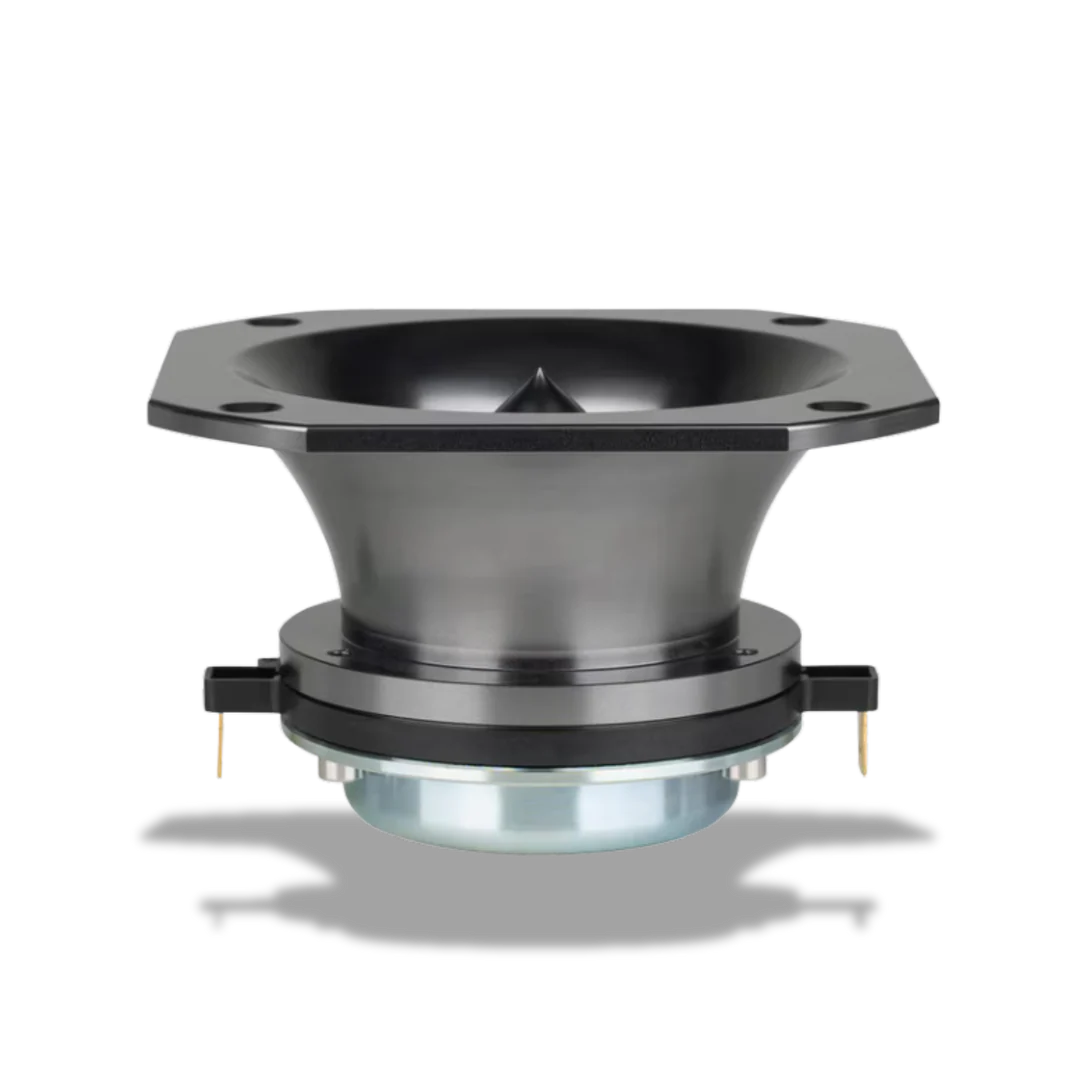

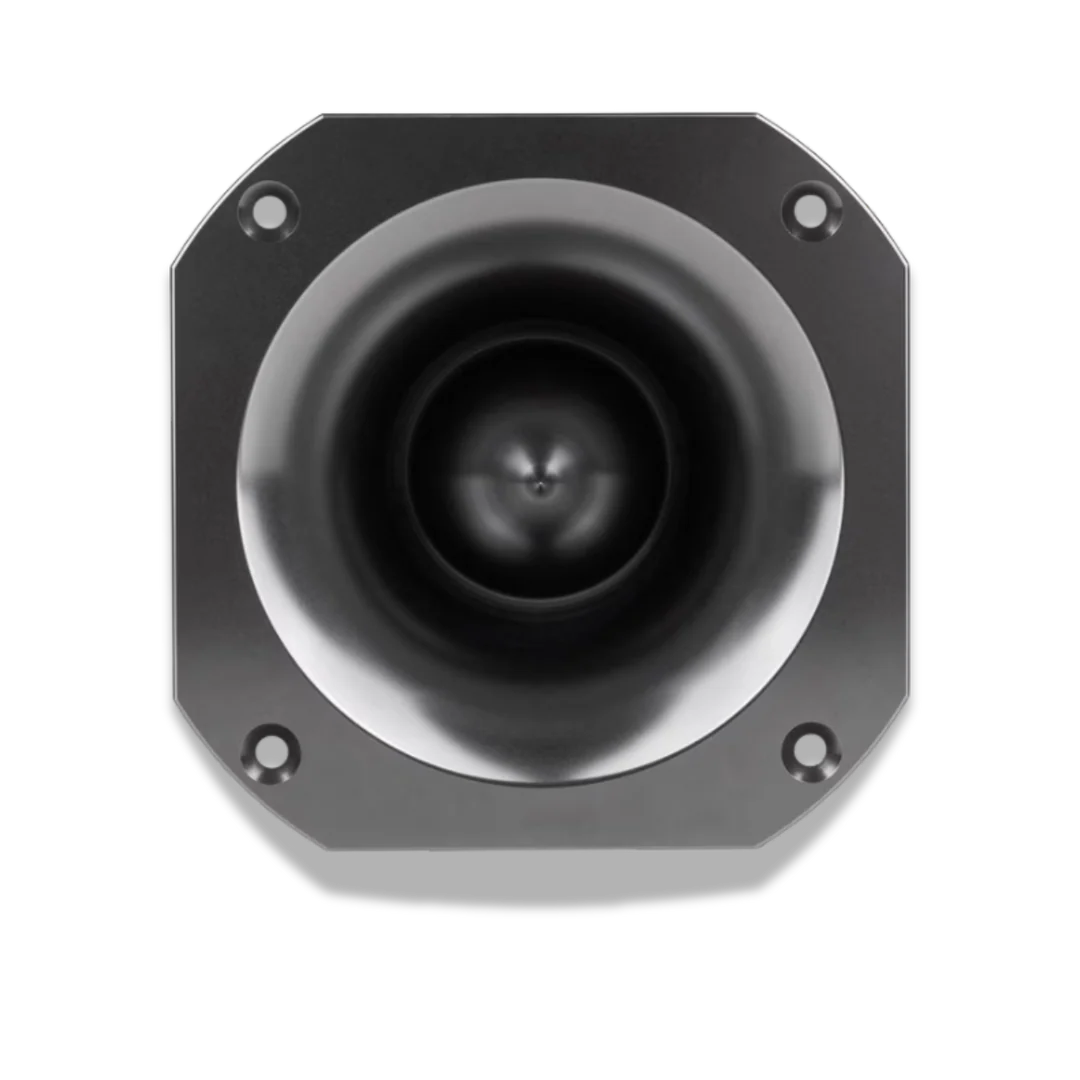

CIARE SPL CT440 500W High Output Super Bullet Tweeter Anodized Silver 8-Ohm

Key Features

• Program Power: 500 W
• Overall Size: 4.41" (112 mm) W x 4.41" (112 mm) H
• Rated impedance: 8 Ohm
• Sensitivity (2,83V/1~m): 110 dB
• Voice coil diameter: 1.75 in - 44
  mm
• Frequency Range: 2000-20000
  Hz

Tech Specs

Specs

Nominal Diameter

1.75" - 44 mm

Rated Impedance

8 Ohm

Nominal Power Handling

250 W

Program Power

500 W

Sensitivity

110 dB

Frequency Range

2000-20000 Hz

Minimum Impedance

Flange material

Aluminum

Magnet Material

Neodymium

Diaphragm Material

Mylar

Diaphragm Shape

Planar

Surround

Voice Coil Diameter

1.75 in - 44 mm

Voice Coil Winding Material

Aluminum

Voice Coil Former Material

Flux Densitry

1.65 Tm

Ferrofluid

No

Connection type

Faston

Recommended Crossover Frequency

2 KHz

T/S Parameters

Resonance frequency (Fs)

1400 Hz

DC Resistance (Re)

4.5 Ohm

Mechanical Q Factor (Qms)

Electrical Q Factor (Qes)

-

Total Q Factor (Qts)

Bl Factor (BI)

Effective Moving Mass (Mms)

Suspension Compliance (Cms)

-

-

Effective Piston Diameter (D)

Effective piston area (Sd)

Voice Coil Inductance @ 1kHz (Le)

Mounting & Shipping

Overall Diameter

112X112 mm

Baffle Cutout Diameter

95 mm 3.74 in

Flange Thickness

4 mm 0.16 in

Total Depth

68 mm 2.68 in

Bolt Circle Diameter

116 mm 4.57 in

Bolt Holes Quantity & Diameter

4/4.5 mm 0.18 in
