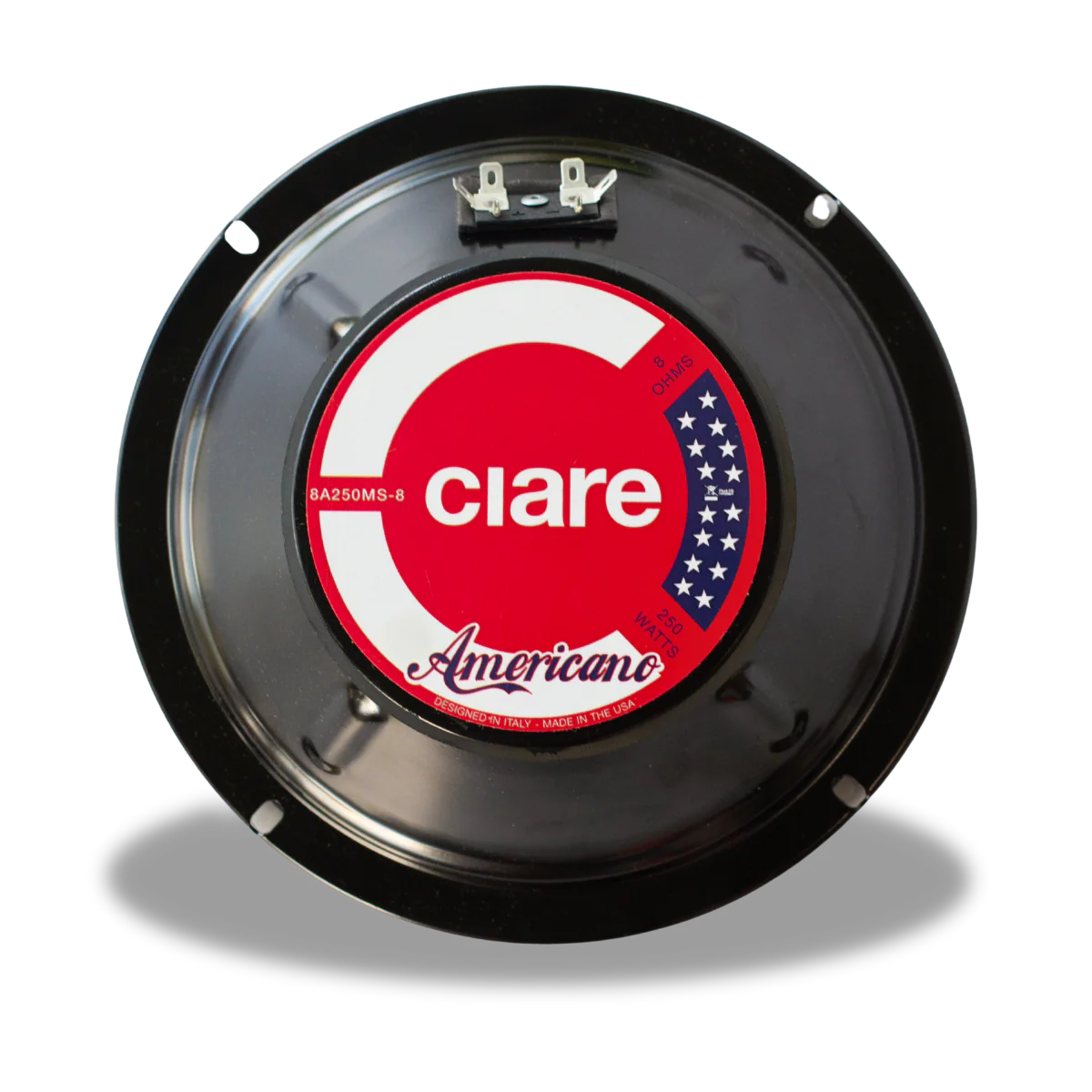

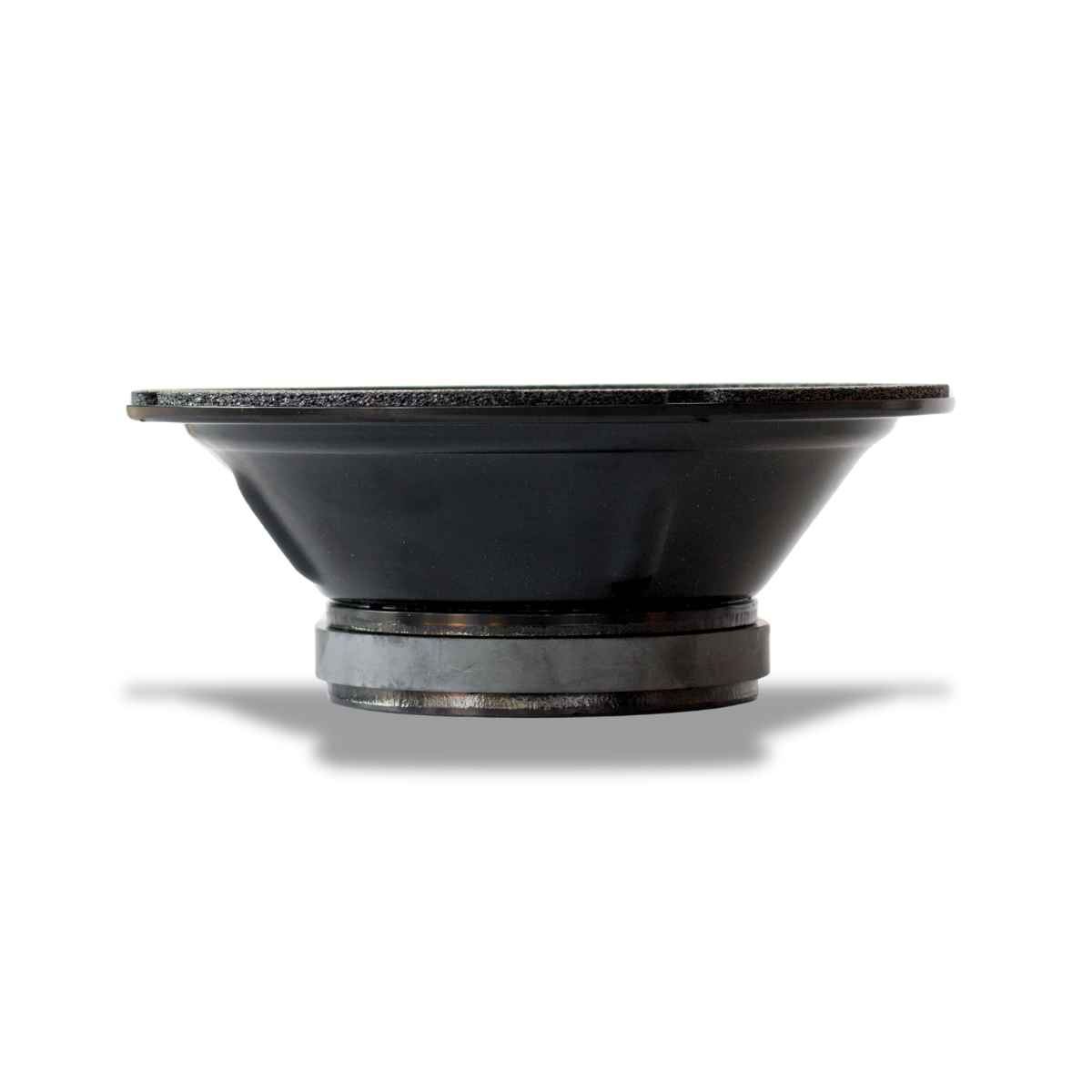

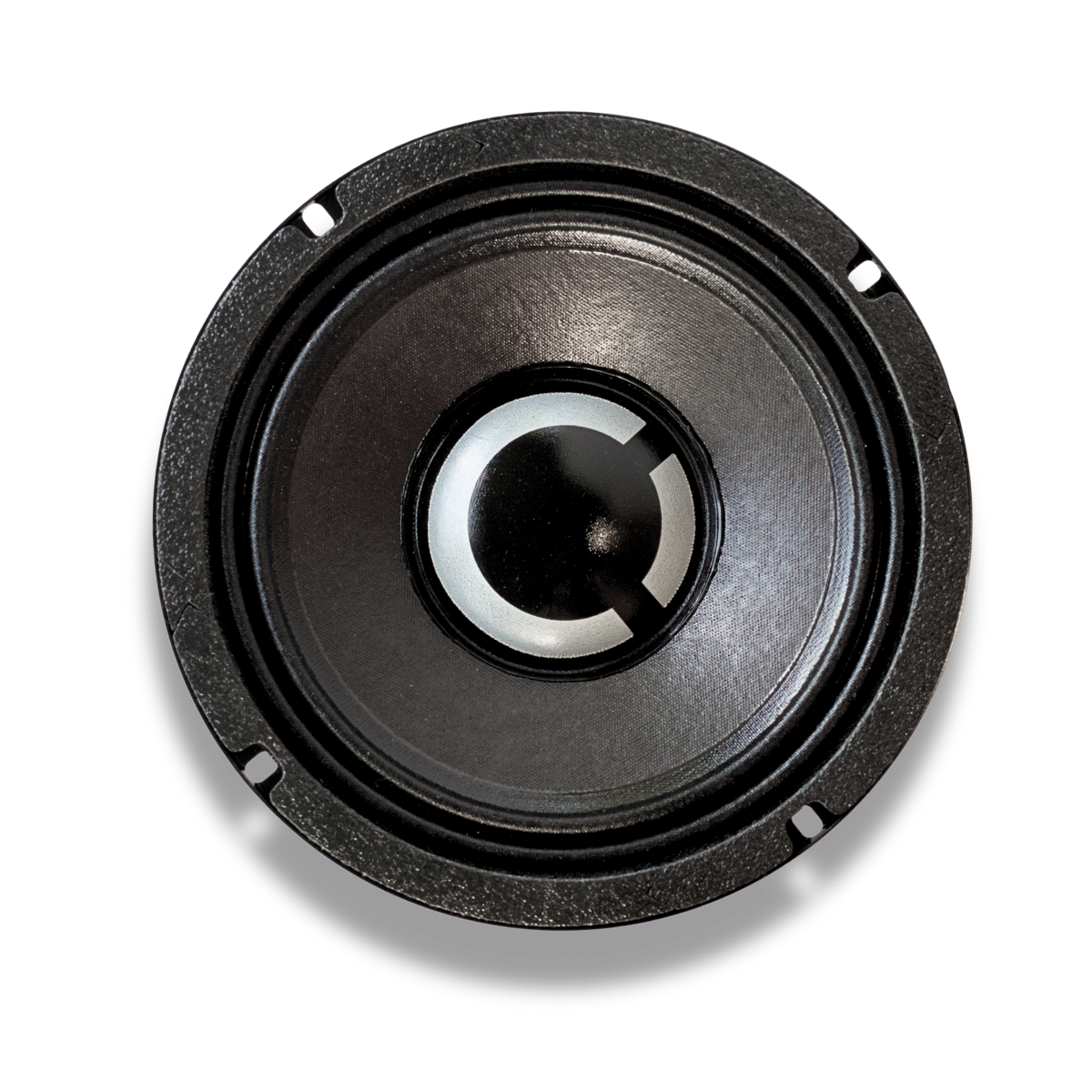

CIARE Americano 8A250MS-8 8" 250W Sealed-Back Midrange 8-Ohm

The Ciare Americano 8A250MS-8 is a sealed 8" 250W midrange driver with a 1.5" copper voice coil and polyimide former. Its sealed-back design is perfect for tight spaces, while Acquafoca™ cone treatment, 97 dB sensitivity, and 120+ dB SPL ensure powerful, clear output from 400 Hz to 4 kHz.

Key Features

• High-power 250W midrange with 1.5" copper voice coil and polyimide former
• Sealed-back basket for space-limited applications where enclosures aren't possible
• Proprietary Acquafoca™ M cone treatment for water and UV
  resistance
• Extreme, 97 dB sensitive design with a maximum SPL potential of over 120 dB
• Strong, low-distortion
  performance from 400 Hz to 4 kHz

Tech Specs

Specs

Nominal Basket Diameter 8" (203.2 mm)

Nominal Impedance

8 2

Power Rating Watts

125 Watts

Power Rating Music Program

250 Watts

Resonance

425.13 Hz

Usable Frequency Range

350 Hz - 4.8 kHz

Sensitivity

97.9 dB

Magnet Weight

20 oz (566.98 g)

Gap Height

0.25" (6.35 mm)

Nominal Voice Coil Diameter

1.5" (38.1 mm)

Thielle-Small Parameters

Re

5.72 9

Inductance

0.20 mH

Qms

5.55

Qes

3.66

Qts

2.21

BL

7.30 TM

Vas

0.02 cuft (0.64 liters)

Mounting & Shipping

Overall Diameter 8.22"' (208.79 mm)

Baffle Hole Diameter

7.19" (182.63 mm)

Mounting Hole Diameter

0.22" (5.588 mm)

Depth

3.25" (82.55 mm)

Shipping Weight

5.1 lbs (2.31 kg)

Net Weight

4.40 lbs (2 kg)

Volume Displaced

34.56 in3 (0.58 liters)
