SoundQubed S1-850.1 S Series Monoblock Amplifier
SoundQubed
The SoundQubed S1-850 Monoblock Amp offers unrivaled Class D power at an unbeatable price. This heavy-duty car subwoofer amplifier delivers more than 900 Watts RMS through a single channel for subwoofer or array applications, capable of over 1000W RMS on 16 volts. Our most affordable and compact monoblock car amplifier has a deceptively small form factor — big booming sound with a small footprint.
The heavy-duty printed circuit board features both thermal protection for high heat situations and speaker protection. An on-board low-pass filter lets you limit which frequencies are amplified, and the subsonic filter helps prevent extreme low-end distortion. An LED clipping indicator on the included bass remote gives you the subwoofer control needed to avoid coil damage.
FEATURES
- Single channel, Class D, 1 Ohm stable
- 900 Watts RMS @ 1 Ohm

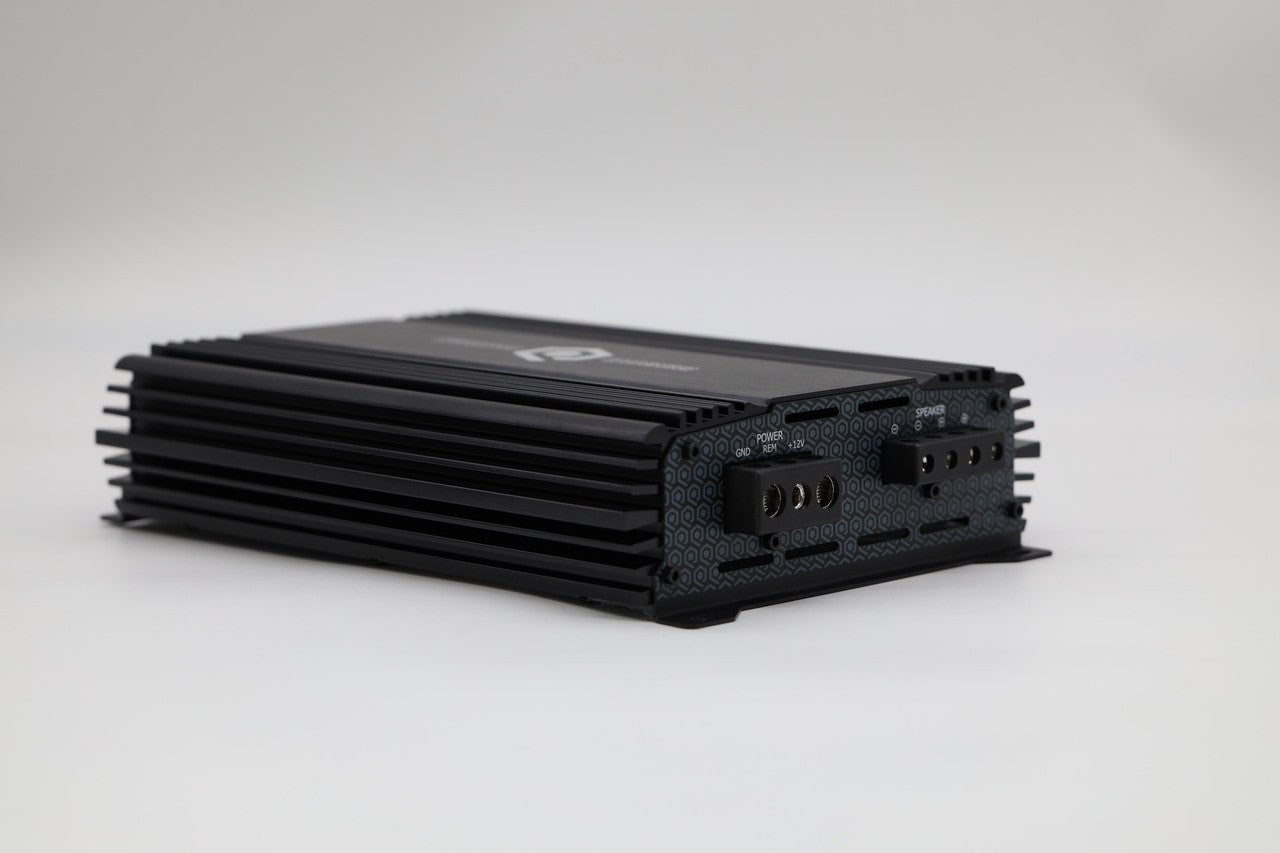

- 4 AWG power inputs, 10 gauge speaker terminals

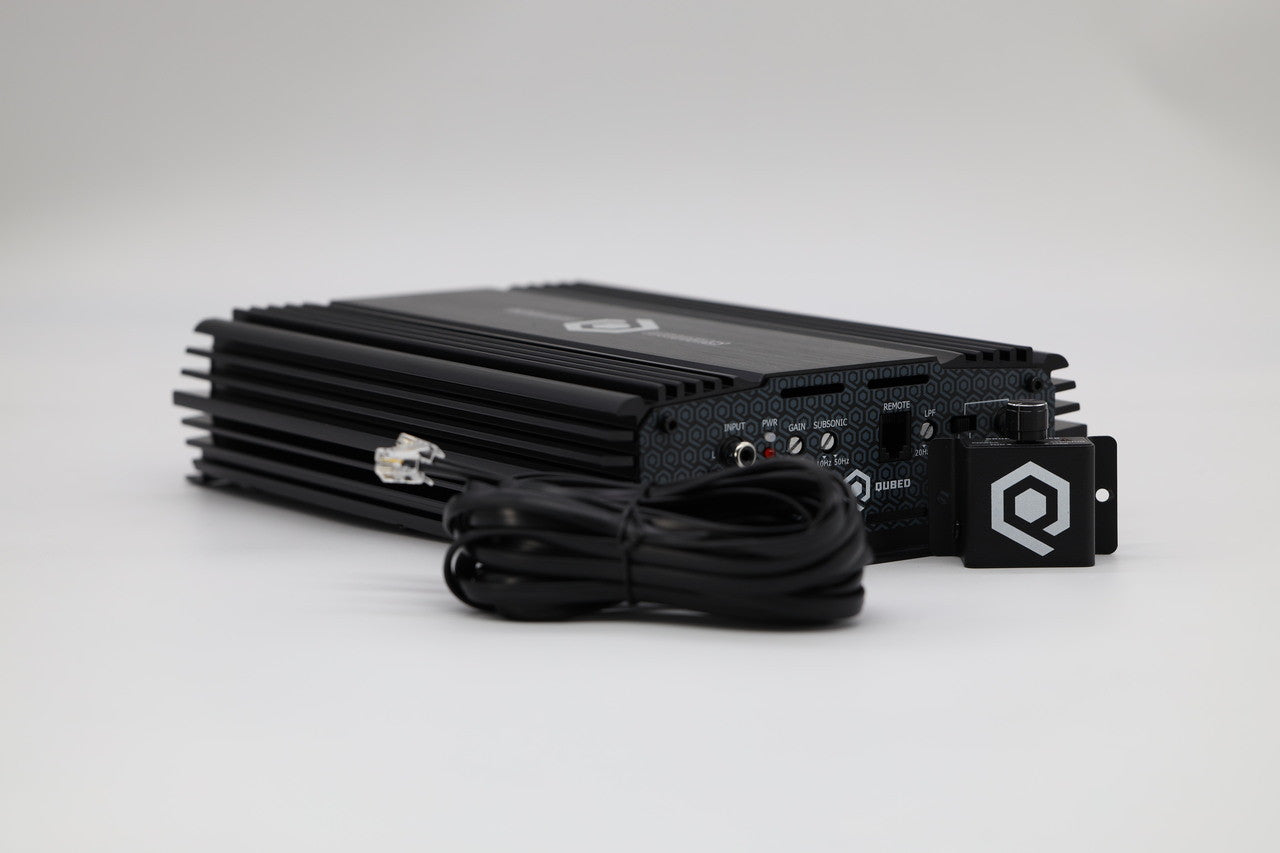

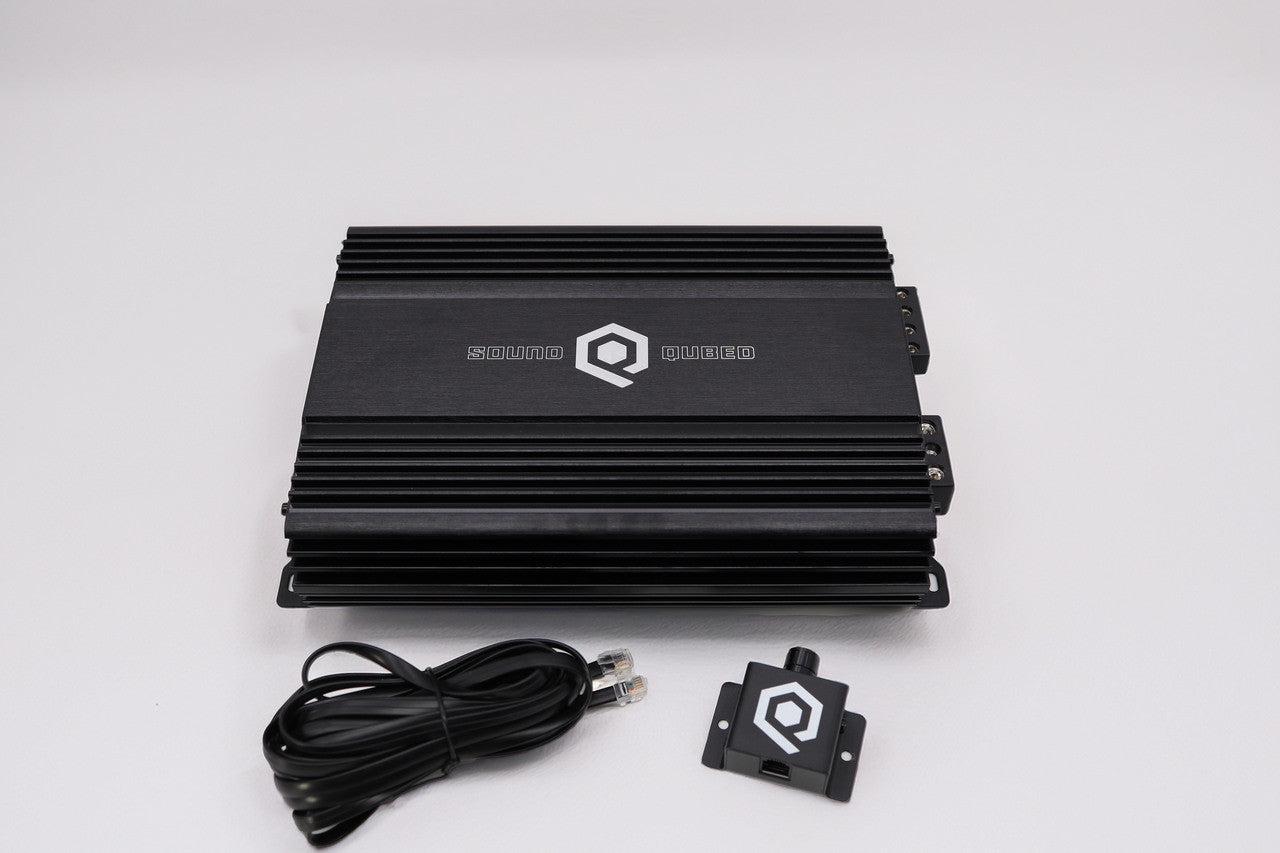

- Included bass remote with LED clipping indicator
- Strappable for dominating bass on bigger builds
SPECIFICATIONS
- Class: Class D
- Channels: 1
- Working Voltage: 8.5V-16V
- Maximum Amperage: 90A
- Power @ 4 Ohm (14.4V): 375W RMS
- Power @ 2 Ohm (14.4V): 625W RMS
- Power @ 1 Ohm (14.4V): 900W RMS
- Frequency Response: 10Hz-200Hz
- S/N Ratio: Greater than 80
- Damping Factor: Greater than 100
- Input Sensitivity: 5V-0.15V
- Subsonic Filter: 10Hz-50Hz
- Low-Pass Filter: 20Hz-200Hz
- Dimensions (LxWxH): 9.8 x 7.8 x 2.2 in
SKU: S1-850. UPC: 7181220797048. Covered by SoundQubed's 12-month warranty against defects in materials and workmanship.
