SoundQubed S1-2500.1 S Series Monoblock Amplifier

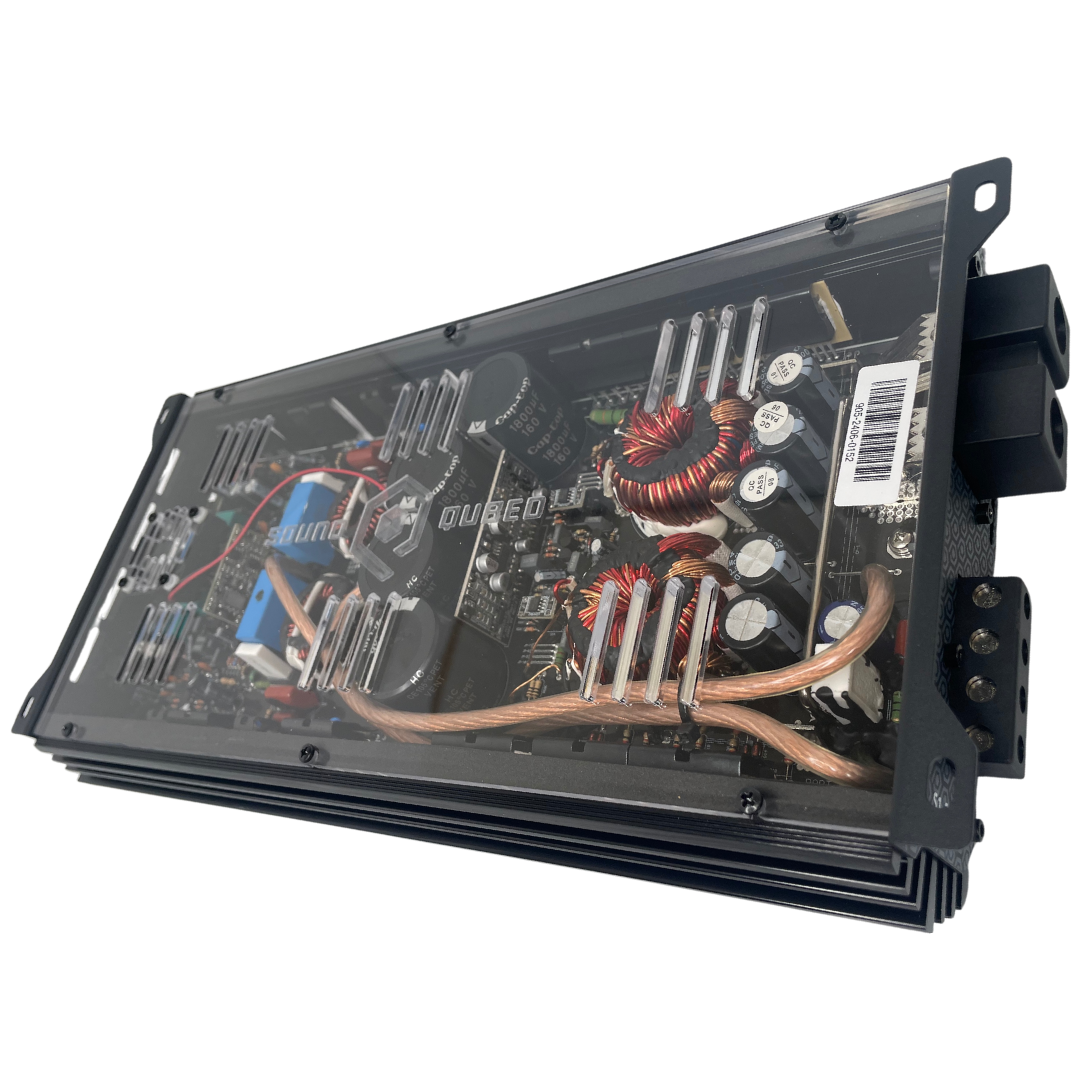

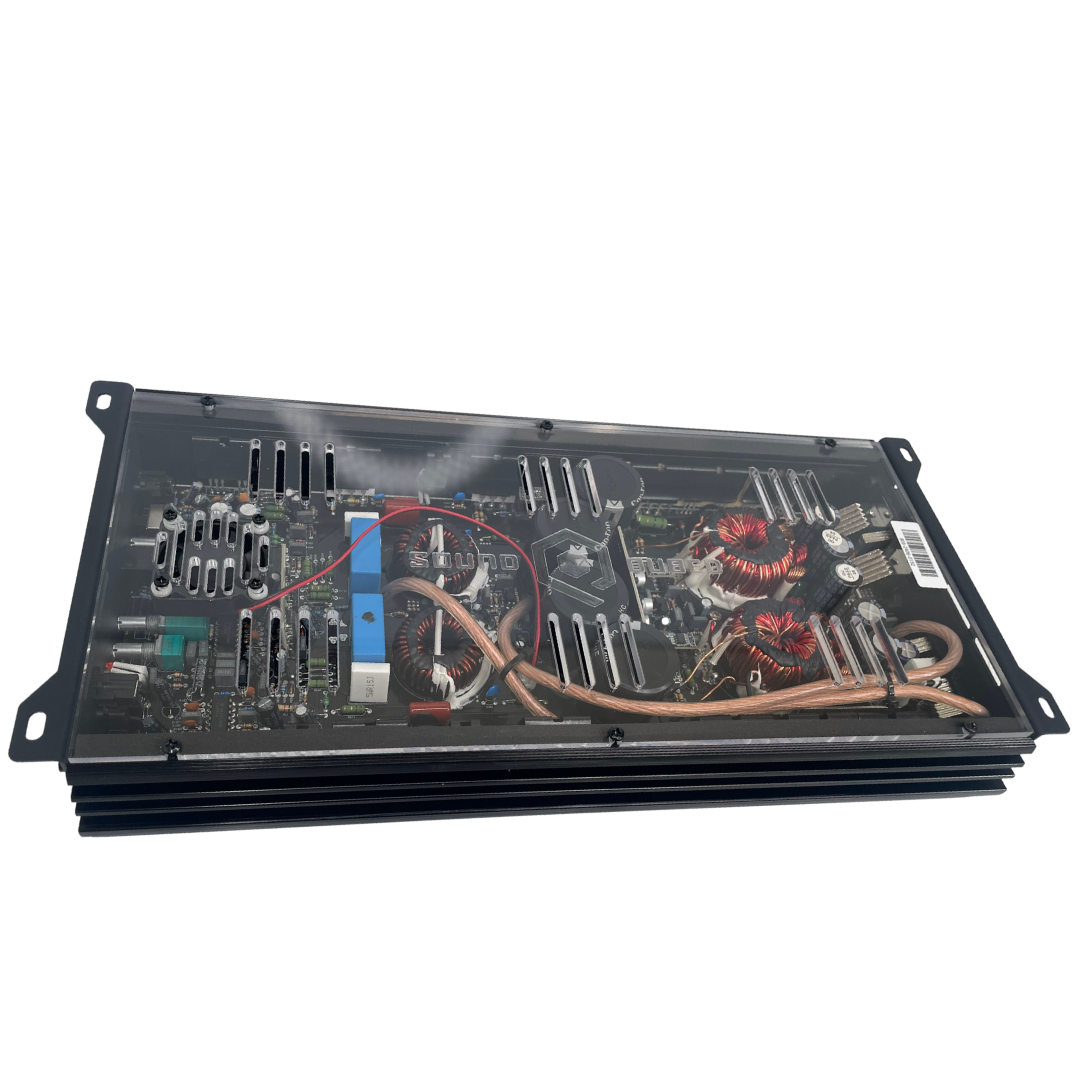

Following the massive footsteps of SoundQubed's most popular mono amp, the S1-2500.1 monoblock car amp has improved circuitry over its predecessor, the S1-2250. The advanced circuit board keeps operating temperature low, produces more power, and uses the latest technology to help prevent internal damage. High-quality Class D design keeps the amplifier cool, guarantees low total harmonic distortion, and prevents high-output performance from damaging your electrical system.

The S1-2500.1 drives an immense 3000-watt load at 1 Ohm on 16 volts, and 2500 watts on 14.4 volts at 1 Ohm. Strappable for 5000 watts at 2 Ohm, this budget-friendly mono block is ready for Sound Pressure Level competitions and everyday builds alike. A remote gain control knob with LED clipping indicator is included to help avoid costly voice coil damage.

Note: this amplifier requires an upgraded electrical charging system to run at full power safely — Big 3 wiring upgrade, a high-output alternator, and an AGM or lithium battery are recommended.

FEATURES

• Single channel, Class D, 1 Ohm stable
• 2500 Watts RMS @ 1 Ohm

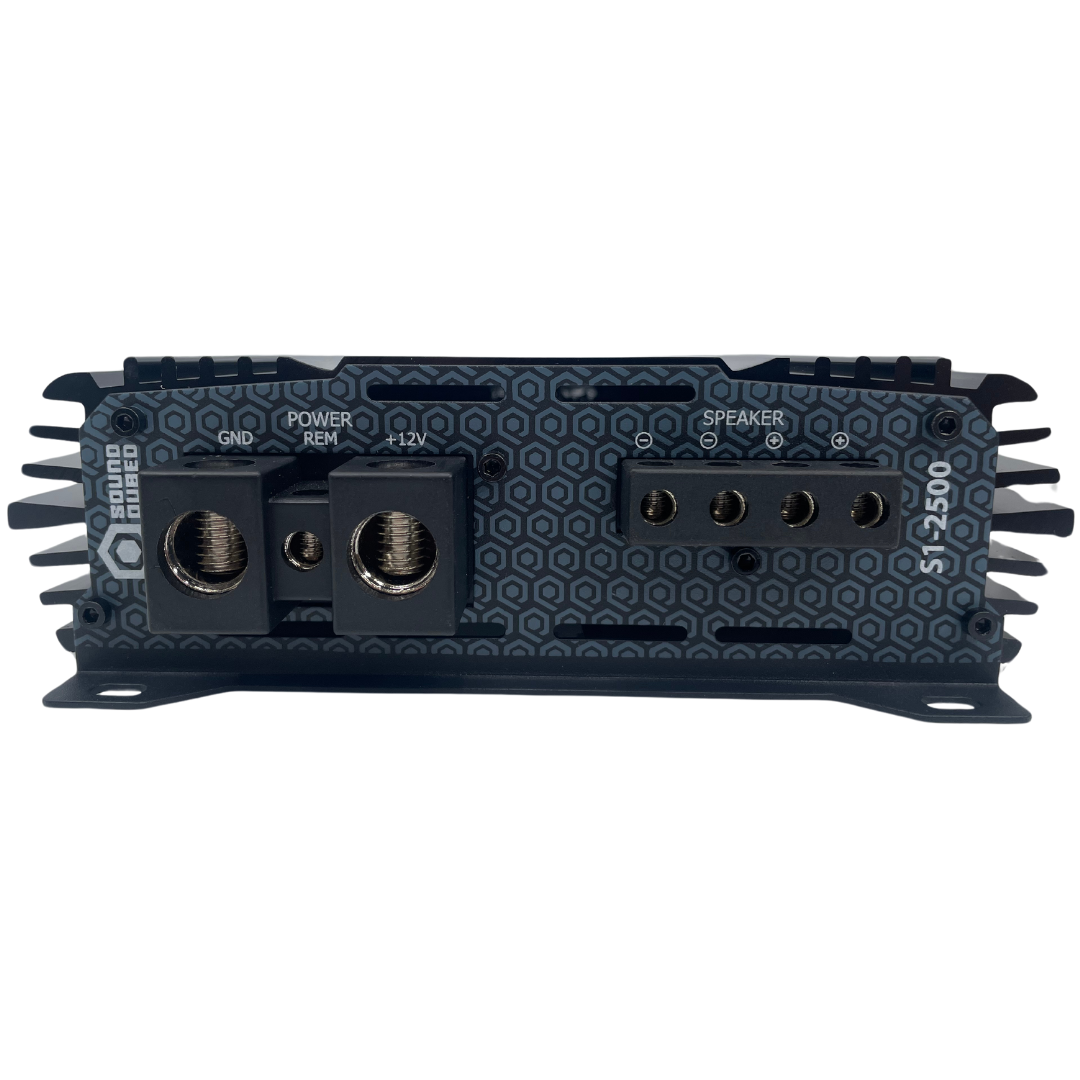

• 1/0 AWG power inputs, up to 10 gauge speaker wire

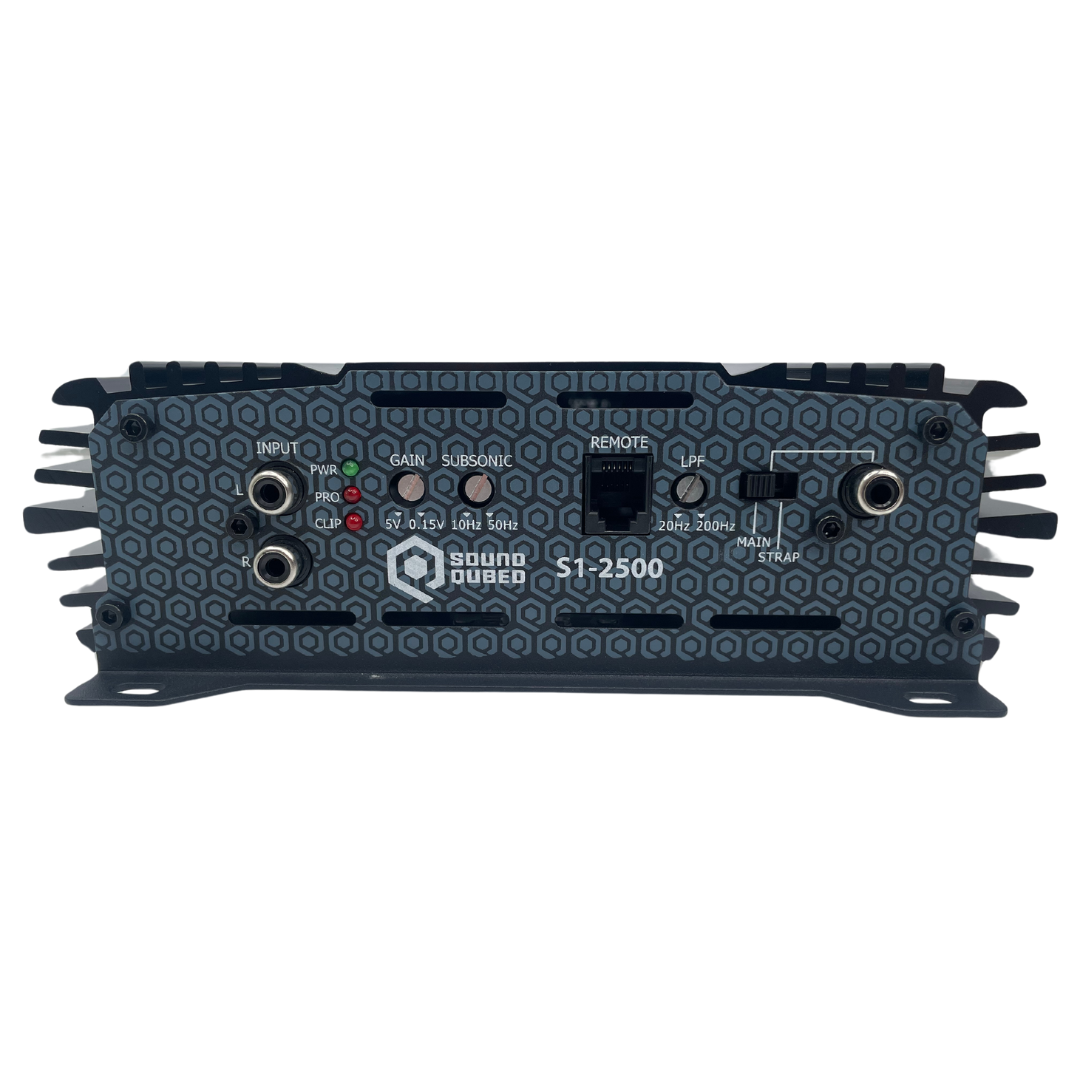

• Remote gain control knob with LED clipping indicator included

SPECIFICATIONS

• Class: Class D
• Channels: 1
• Working Voltage: 8.5V-16V
• Maximum Amperage: 225A
• Power @ 4 Ohm (14.4V): 1000W RMS
• Power @ 2 Ohm (14.4V): 1600W RMS
• Power @ 1 Ohm (14.4V): 2500W RMS
• Frequency Response: 10Hz-250Hz
• S/N Ratio: Greater than 92
• Damping Factor: Greater than 93
• Input Sensitivity: 5V-0.15V
• Subsonic Filter: 10Hz-50Hz
• Low-Pass Filter: 20Hz-200Hz
• Dimensions (LxWxH): 15.39 x 7.75 x 2.44 in

SKU: S1-2500. UPC: 810097265523. Covered by SoundQubed's 12-month warranty against defects in materials and workmanship.
