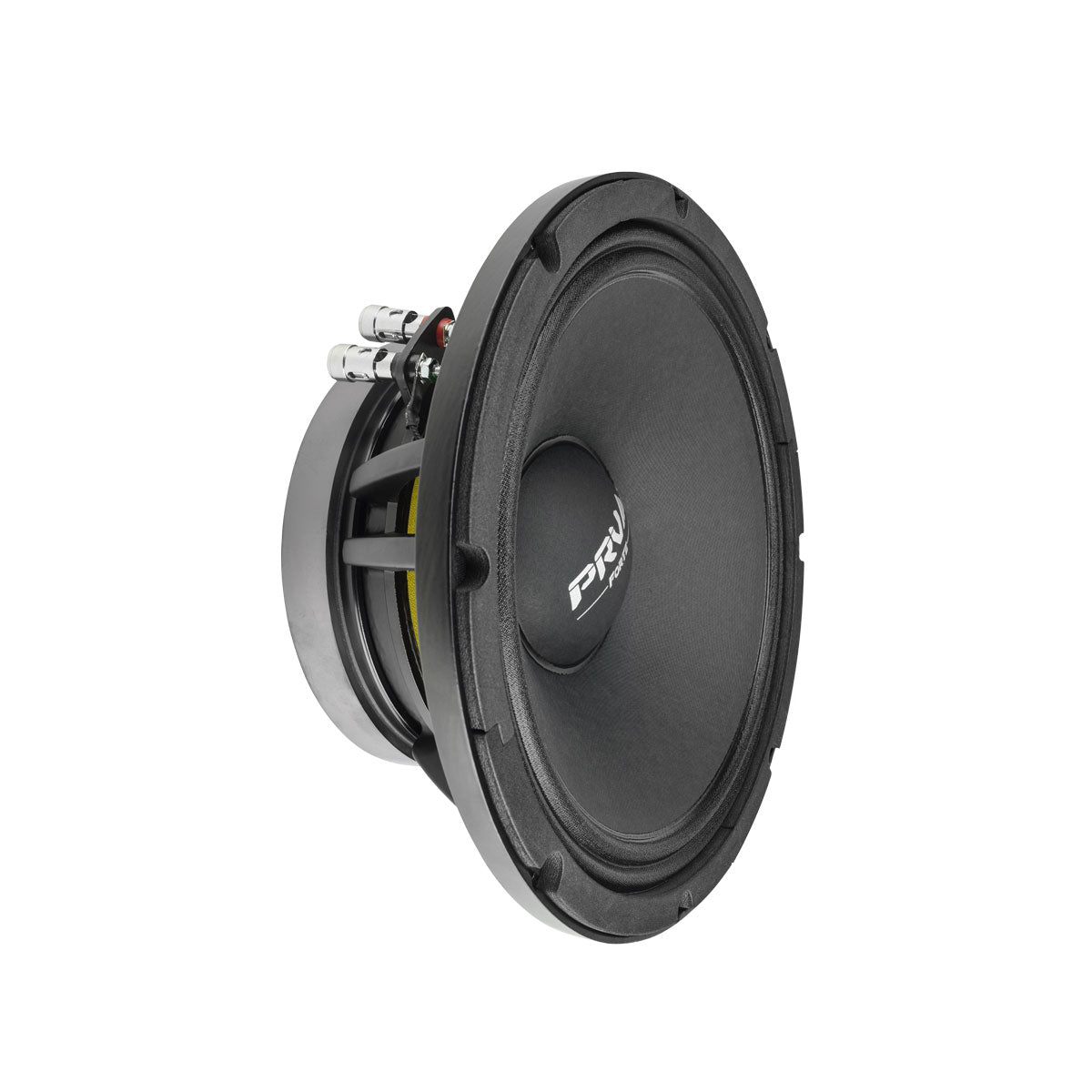

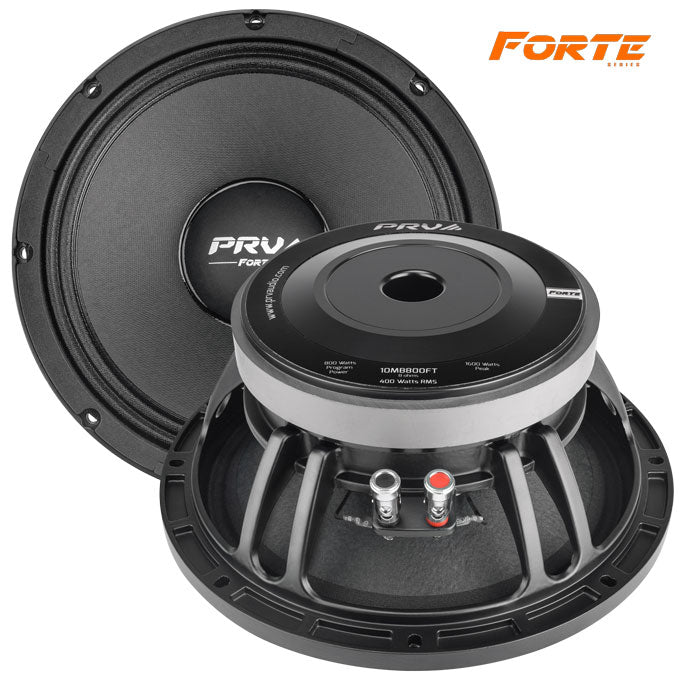

PRV 10MB800FT (SINGLE)

• 400 Watts continuous power handling • 99 dB Sensitivity
• 65 - 6,500 Hz of frequency response • Inside-outside voice coil

10” (254 mm) 8 Ohms
400 Watts800 Watts99 dB

Nominal Diameter
Nominal impedance
Rated Power Handling
Program Power
Sensitivity 2.83 V at 1m
Recommended Hi Pass Crossover* 120 Hz*

*For Full Power Handling

Frequency Response at -10dB

Voice Coil Diameter Voice Coil Wire
Voice Coil Winding Depth Former Material Magnetic Gap Depth Frame Material

*12db Per Octave Crossover

65 - 6,500 Hz

2.5” (65 mm) CCAW
11.0 mm Glass Fiber 8.0 mm

Die cast aluminum
