Diamond Audio Micro1V2 – Mono Amplifier
Diamond Audio
Deliver powerful, controlled bass in a compact footprint with the Diamond Audio MICROV2 1-Channel Monoblock Class D Amplifier. Engineered for efficiency and performance, this monoblock amplifier is designed to drive subwoofers with precision, making it ideal for car audio, marine, motorcycle, and powersports systems where space and reliability matter.
Built using ultra-efficient full-range Class D topology, the MICROV2 monoblock amplifier produces impressive power in a small chassis, delivering 500W x 1 at 1 ohm, 300W x 1 at 2 ohms, and 175W x 1 at 4 ohms RMS. An advanced Direct FET power MOSFET output stage ensures clean, efficient power delivery with minimal distortion, while balanced differential inputs provide noise-free signal transmission even in complex installations.
Designed for durability, the MICROV2 includes advanced Rollback and Thermal Protection, preventing overheating and ensuring uninterrupted playback. Its high-density aluminum alloy chassis improves heat dissipation while maintaining an ultra-compact design for flexible installation in tight spaces.
KEY FEATURES
- 1-channel monoblock Class D amplifier
- 500W x 1 @ 1Ω / 300W x 1 @ 2Ω / 175W x 1 @ 4Ω RMS
- Ultra-compact aluminum chassis design
- Advanced Rollback & Thermal Protection
- Balanced differential inputs for clean signal

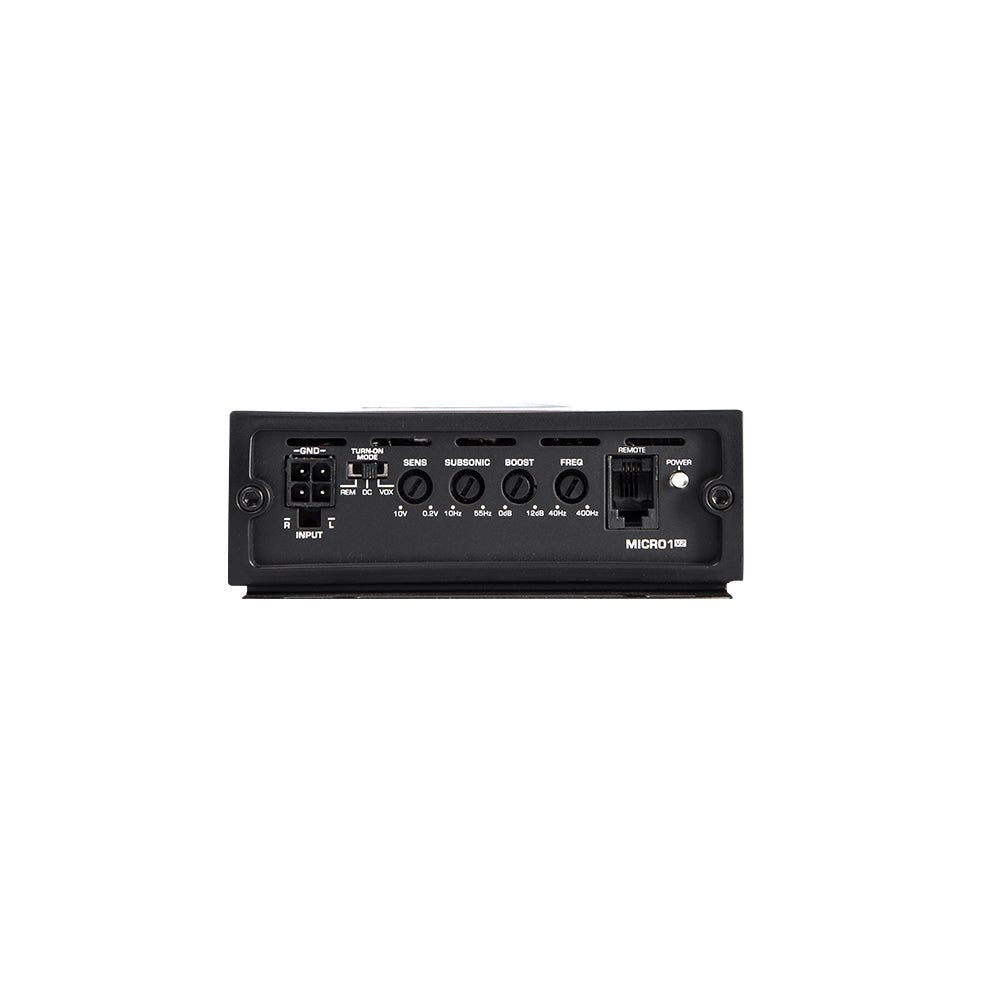

- 24dB low-pass crossover and bass boost EQ
- Selectable REM / VOX / DC turn-on modes
- Includes remote bass knob and wiring harness kits
SPECIFICATIONS
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter: 40-400Hz (LPF), 24dB per octave slope
- Frequency Response: 10-500Hz
- Dimensions: 7.89" x 4.0" x 1.46"
SKU: MICRO1V2. Covered by Diamond Audio's warranty against defects in materials and workmanship.
