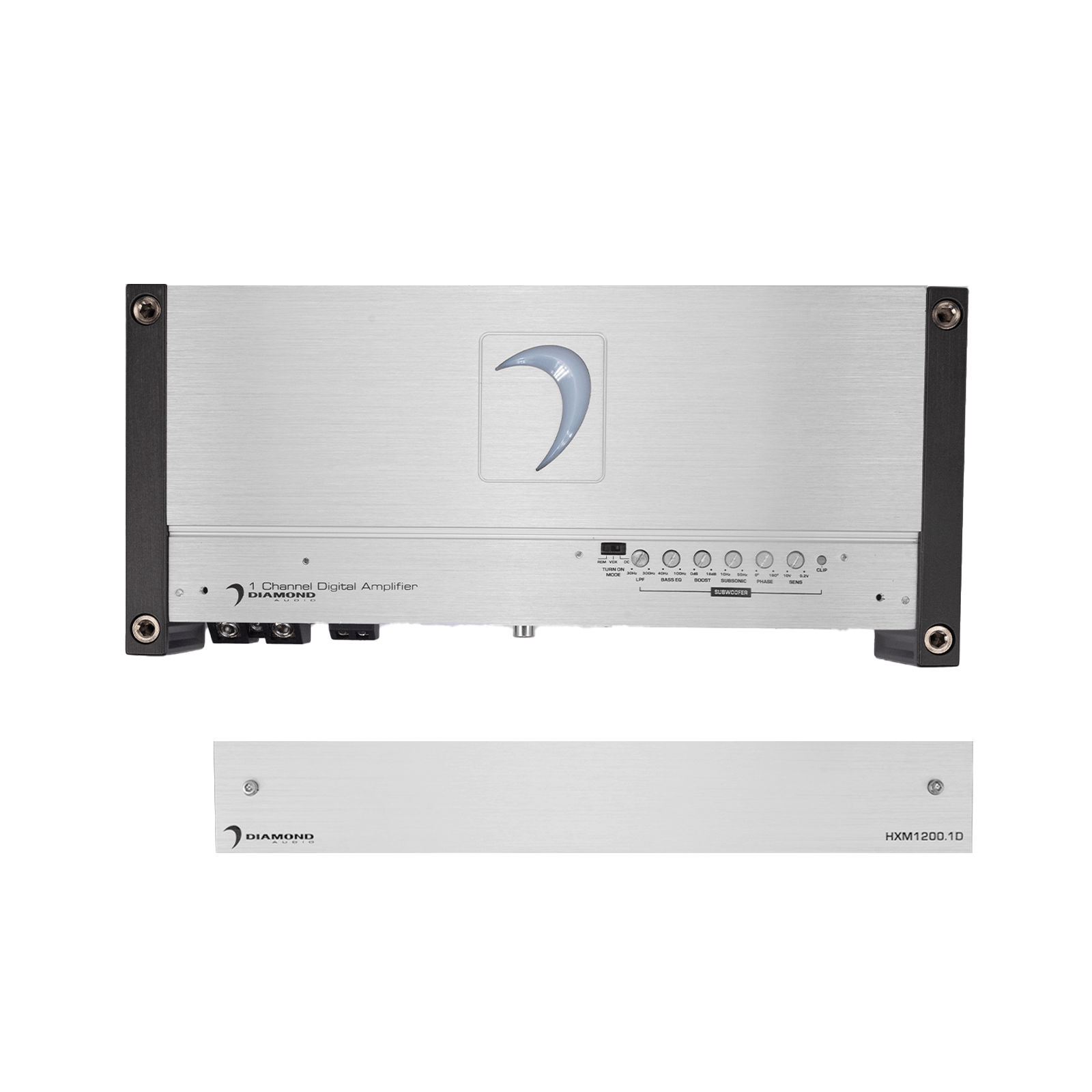

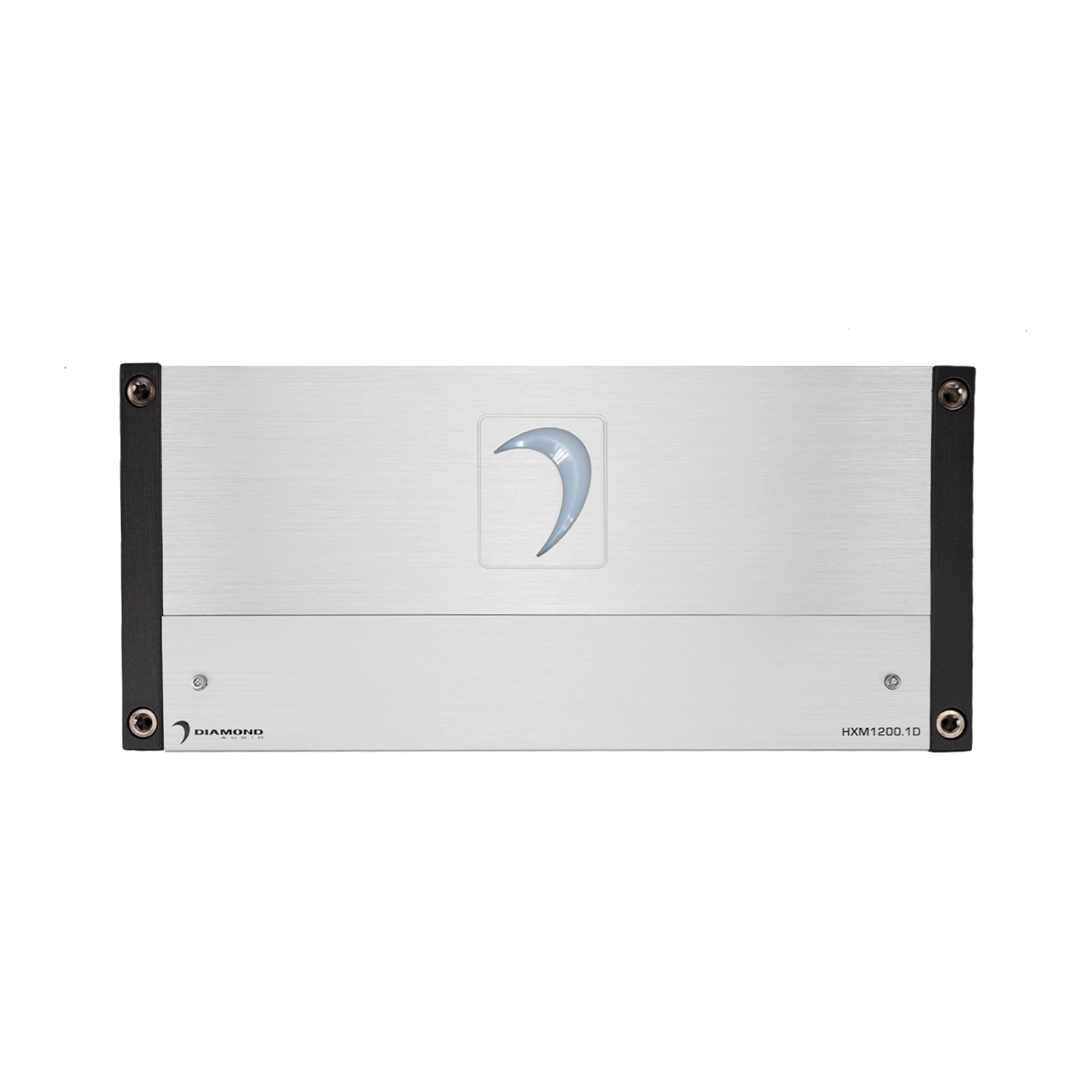

Diamond Audio HXM1200.1D – Mono Motorsport Amplifier
Diamond Audio
Unleash extreme bass performance with the Diamond Audio MOTORSPORT Series 1-Channel Class D Monoblock Amplifier, engineered for high-output systems that demand power, precision, and durability. Designed for marine audio, motorcycles, UTVs, ATVs, and powersports applications, this high power monoblock amplifier delivers exceptional performance in the toughest environments.
Built with advanced full-range Class D digital technology, this monoblock amplifier produces massive output with 1200W RMS at 1 ohm, 850W at 2 ohms, and 550W at 4 ohms, making it ideal for driving high-performance subwoofers. Designed for durability, it features conformal-coated multi-layer circuit boards protecting against moisture, dust, and harsh outdoor conditions, along with an anodized extruded aluminum heat sink for superior thermal performance.
KEY FEATURES
- 1-channel Class D monoblock amplifier
- 1200W @ 1Ω / 850W @ 2Ω / 550W @ 4Ω RMS power
- Water-resistant design for marine and powersports use
- Conformal-coated circuit boards for durability
- Variable LPF, subsonic filter, and phase control
- Balanced differential inputs for clean signal
- Output clip indicators for precise setup
- Includes bass remote control
SPECIFICATIONS
- RMS Power: 1200W @ 1Ω / 850W @ 2Ω / 550W @ 4Ω
- Crossover: Variable Low-Pass 30-300Hz, Variable Sub-Sonic 10-55Hz
- Dimensions: 11.72" x 5.27" x 1.75"
SKU: HXM1200.1D. Covered by Diamond Audio's warranty against defects in materials and workmanship.
