Cicada Audio DSP600.4D – 4-Channel DSP Amplifier, 150W x4

DSP CONTROLLED 4 CHANNEL POWER AMPLIFIER

• 4 X 70 WRMS into 4 ohms @ 12.5 Vdc
• 4 X 92 WRMS into 4 ohms @ 14.4 Vdc
• 4 X 115 WRMS into 2 ohms @ 12.5 Vdc
• 4 X 152 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

• 2 X 218 WRMS into 4 ohms @ 12.5 Vdc
• 2 X 300 WRMS into 4 ohms @ 14.4 Vdc
• Frequency response – 20-20,000 +/- 3dB THD < 0.5%
• Operating Voltage: 8V – 16V
• Current Draw (Music): 40 A
• Current Draw (Max): 80 A
• Recommended Fuse (Music): 40 A
• Total Efficiency: 79%
• Damping Factor: 200
• SNR: 91dB

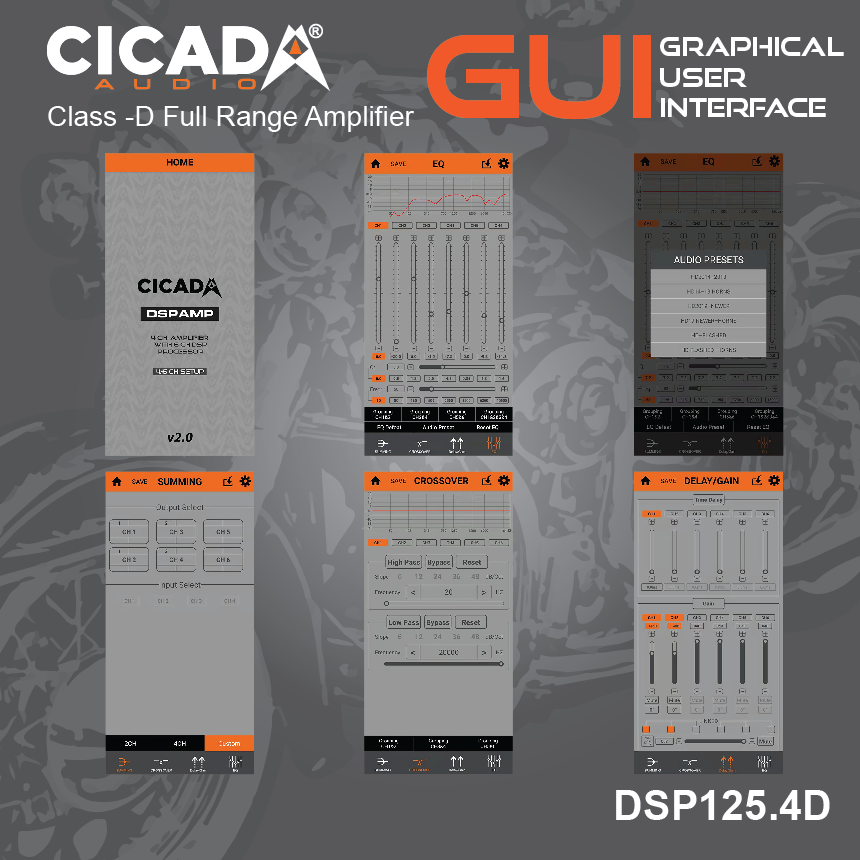

• DSP Crossover HPF/LPF: 0 TO 20kHz
• Slope configurable 6/12/18/24/48dB
• DSP PEQ – 8 BANDS
• Q’s Adjustable from 0.05 – 20
• THD + N (10% Rated Power): 0.1%

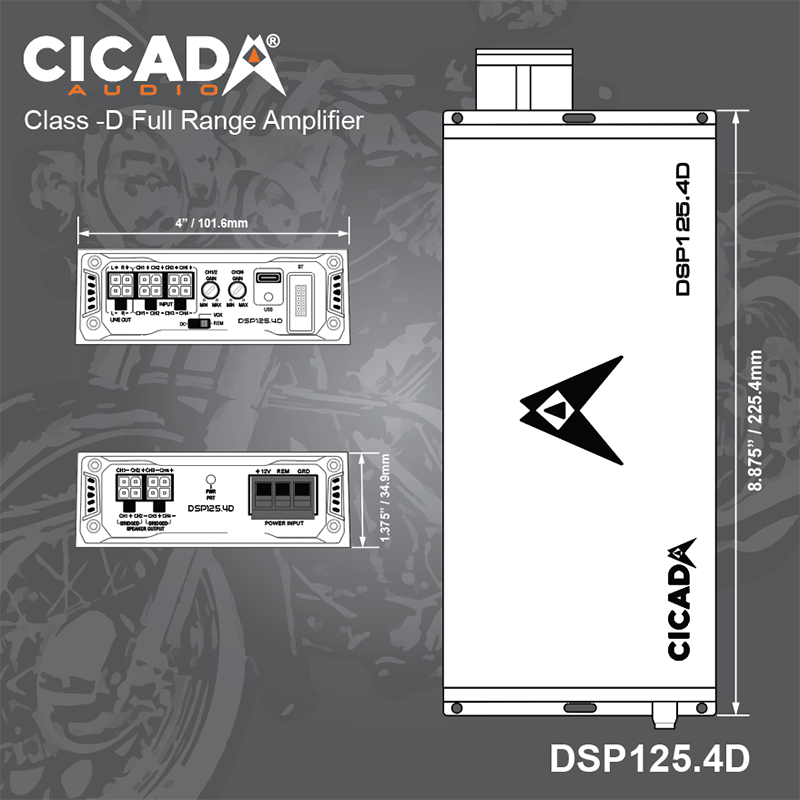

• Product Dimensions (Inches / Millimeters): 8.875 x 4.0 x 1.4 in / 225.4 x 103 x 36 mm
