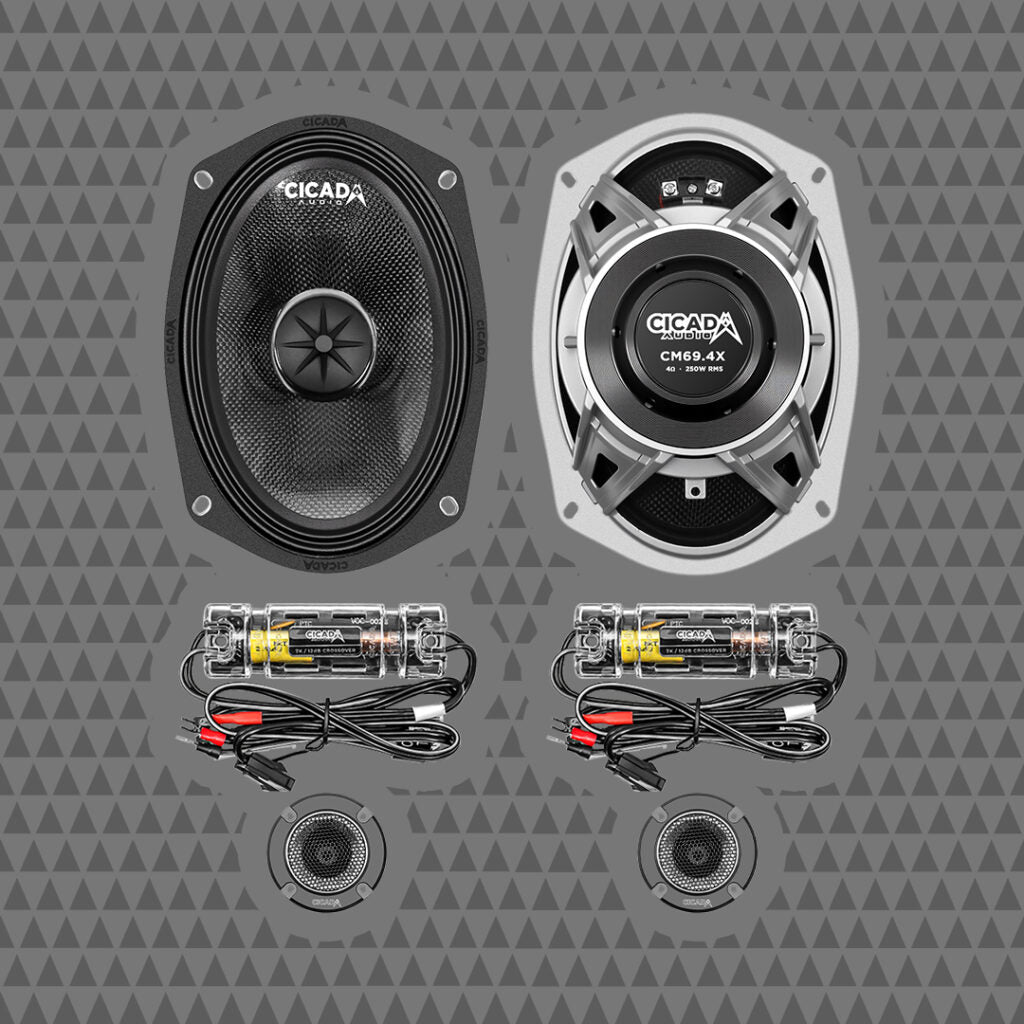

Cicada 24CXK69 – 2024+ 6x9" Mid-Bass Component Speaker Kit

MID-BASS FEATURES

• Rain or Shine all weather performance design
• OFC Copper shorting ring for extended high frequency performance
• Carbon Matrix Composite (CMC) cone - lightweight, strong, high temperature resistant, and exceptionally efficient
• OFC Copper wire voice coil with Black Coat ensures high conductivity, low resistance, and extreme thermal performance
• N35SH Neodymium magnet motor
• Die cast Aluminum custom tooled basket with Vortex Flow Venting
• Two (2) year warranty

MID-BASS SPECIFICATIONS (2Ω)

• 2Ω / 6x9-inch mid-bass driver
• Power Handling: 250W RMS / 500W MAX
• Voice Coil: 2-inch/51mm mid-bass
• Cone: Carbon Matrix Composite
• Magnet: Neodymium
• Sensitivity: 94 dB, 1W/1M
• Frequency Response: 70 Hz - 10 kHz +/-3dB
• Mounting Depth: 3.26-inch/83mm
• Mounting Diameter: 5.7-inch/145mm x 8.5-inch/216mm

TWEETER FEATURES

• Rain or Shine all weather performance design
• Aluminum tweeter dome diaphragm delivers brighter sound and maximized efficiency
• OFC Copper wire voice coil offers great sound while generating less heat
• Custom tooled, vented, encased external crossover
• Field replaceable diaphragm
• Aluminum die cast custom tooled backplate
• N35SH Neodymium magnet motor
• Two (2) year warranty

TWEETER SPECIFICATIONS (4Ω)

• 4Ω / 1-inch shallow ring radiator horn tweeter
• Power Handling: 50W RMS / 100W MAX
• Voice Coil: 1-inch/25mm tweeter
• Tweeter Dome: Aluminum
• Crossover: 12 dB @ 7 kHz
• Magnet: Neodymium
• Sensitivity: 101 dB, 1W/1M
• Frequency Response: 2 kHz - 20 kHz +/-3dB
• Mounting Depth: 1.1-inch/28mm
• Mounting Diameter: 2-inch/50.8mm

Note: mid-bass driver is 2Ω and tweeter is 4Ω in this kit - mixed impedance is expected for component kits. Select the 4-ohm variant for the same kit with a 4-ohm mid-bass driver; mid-bass-specific numbers for that variant not independently confirmed.
