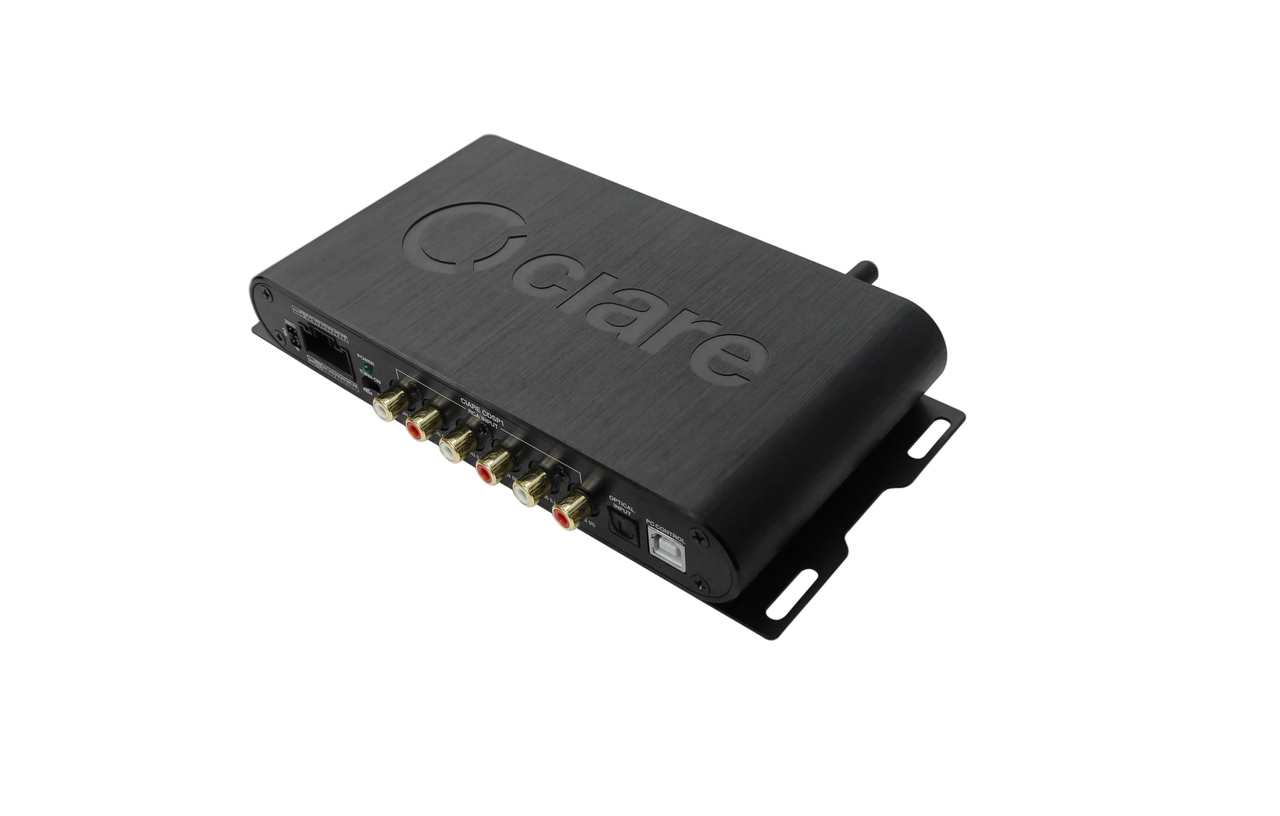

CIARE CDSP1 6-In 8-Out Bluetooth Enabled DSP with Remote

The CIARE CDSP1 Digital Signal Processor is a premium 8-channel car audio DSP designed for complete control over your mobile audio system. Featuring 32-bit/192 kHz processing powered by the Analog Devices ADAU1452 chipset, Bluetooth 5.0 with aptX streaming, and advanced tuning capabilities including 31-band parametric EQ, adjustable crossovers, time alignment, and signal mixing, the CDSP1 delivers high-definition sound with professional-level customization. Compatible with low-level RCA and high-level speaker inputs, it is perfect for cars, motorcycles, Slingshots, trucks, and competition audio builds.

Instructions for upgrading the CDSP1 firmware to use the CIARE CDSP1 Windows Software Version 2 are below.

Key Features

• 32-bit DSP processing with 192 kHz sample rate
• Analog Devices ADAU1452 DSP
  chipset
• Qualcomm CSR8670 Bluetooth
  5.0 with aptX streaming

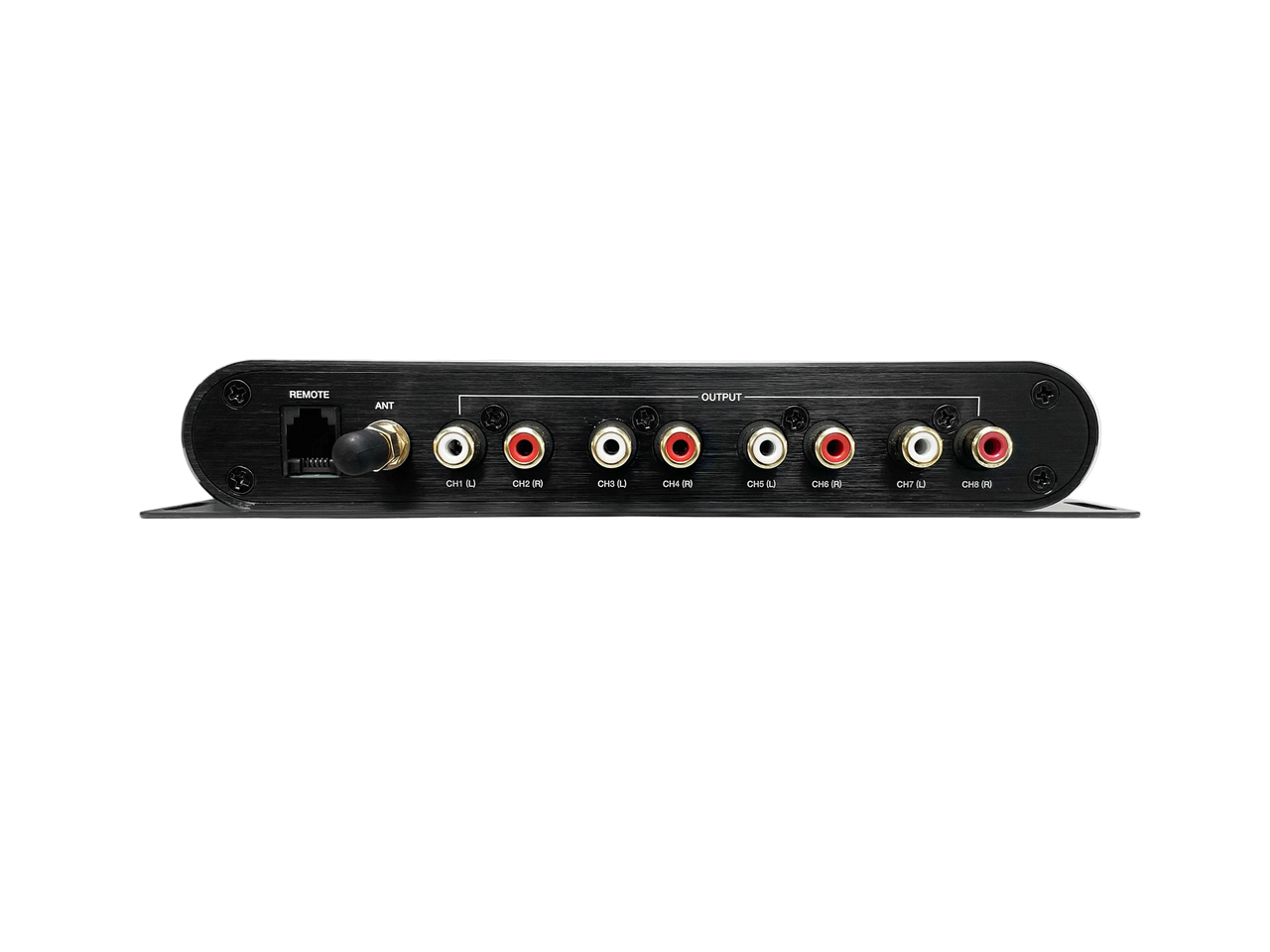

• 6 inputs and 8 configurable outputs

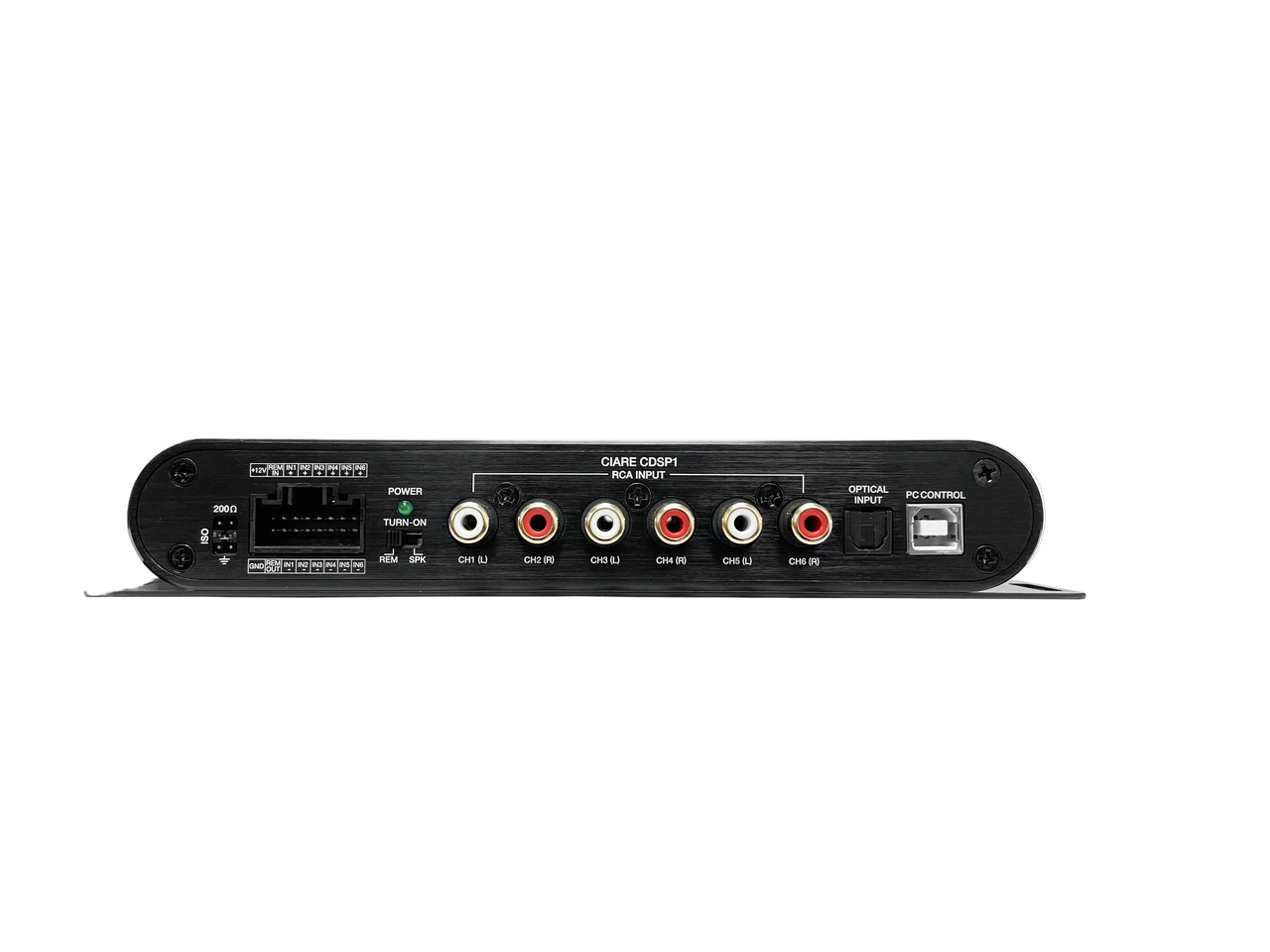

• Supports low-level RCA and high-level speaker inputs
• Up to 31-band parametric EQ per channel
• Adjustable crossovers from 6 dB/octave to 48 dB/octave
• Time alignment and output gain control
• Built-in signal mixer with stereo-to-mono summing

• Preset save/load functionality with custom channel naming
• Included remote controller with
  source and subwoofer control
• Windows PC tuning software included
• Future Android and iOS app support
• Signal sensing and remote turn-on options
• Ground isolation adjustment for noise reduction
• Custom mounting plate included

Tech Specs
