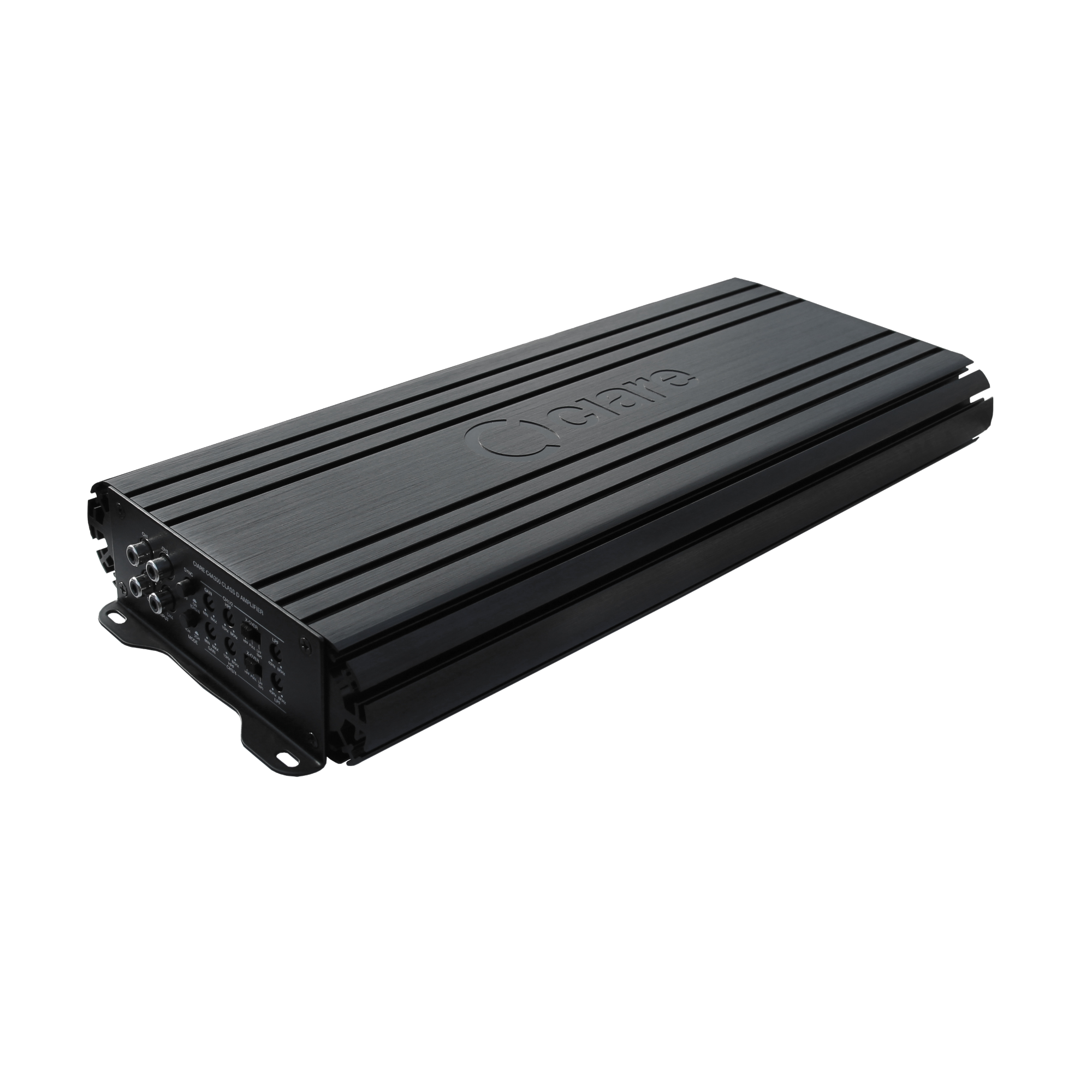

Ciare C4A300 – 4 x 300W Full Range Bridgeable Class D Amplifier

CIARE's C4A300 amplifier is designed from the ground-up for high performance mobile audio and is perfect for SQ (sound quality) installations and small SPL installations, or to simply upgrade a stock car audio system when used with a CIARE CLOC2/CLOC4/CLOC6 high-to-low level converter. The black anodized chassis features a CIARE "C" heatsink to wick heat away from the MOSFETs for long run times without an external fan.

FEATURES

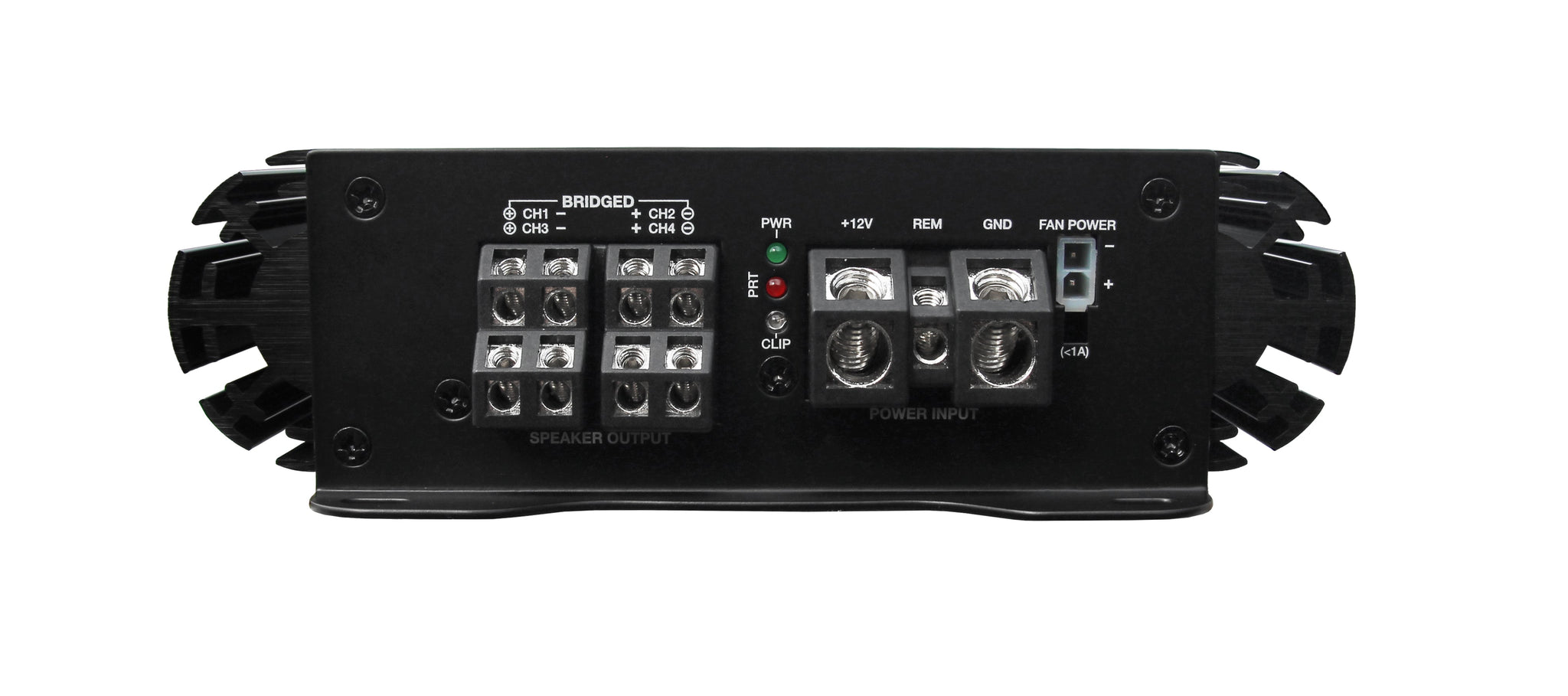

• 2Ω (x four) / 4Ω (x two bridged) stable Class D amplifier with 12 AWG speaker outputs
• Heavy-duty custom-designed Ciare "C" heatsink
• Includes 12V, 1A (max) output for fan, relay control, or remote turn-on

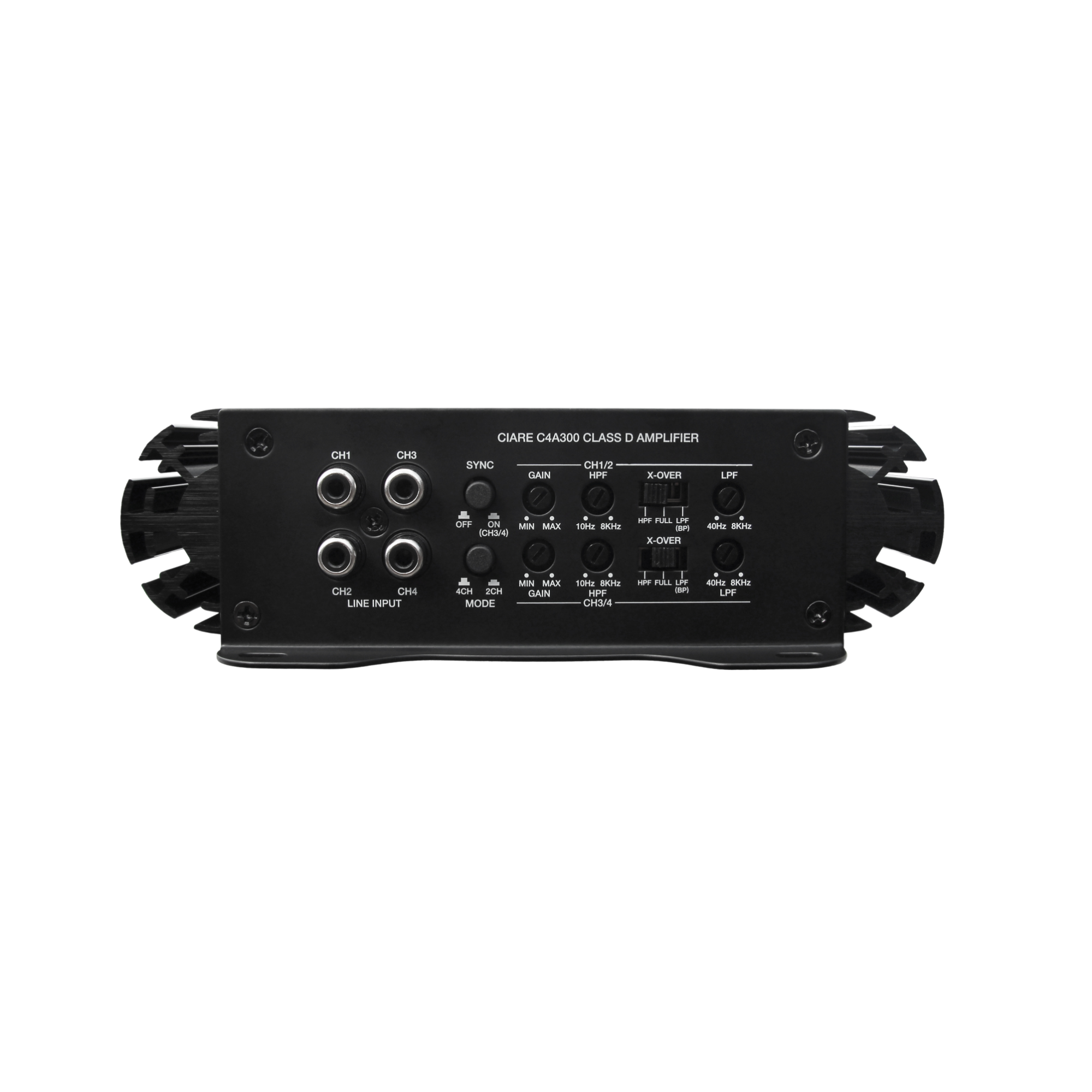

• Variable gain, high-pass, low-pass, and bandpass filter controls with Sync feature
• Soft turn-on circuit with auto-on/auto-off

SPECIFICATIONS

• Power: 4x300W RMS @ 4Ω / 4x480W RMS @ 2Ω / 2x960W RMS @ 4Ω bridged
• Input Sensitivity: 0.5-8V
• SNR: >90dB
• Frequency Response: 9Hz-50kHz (±3dB)
• Dimensions: 16.5" x 7.1" x 2.1"
• Weight: 9.37 lbs

SKU: C4A300.
