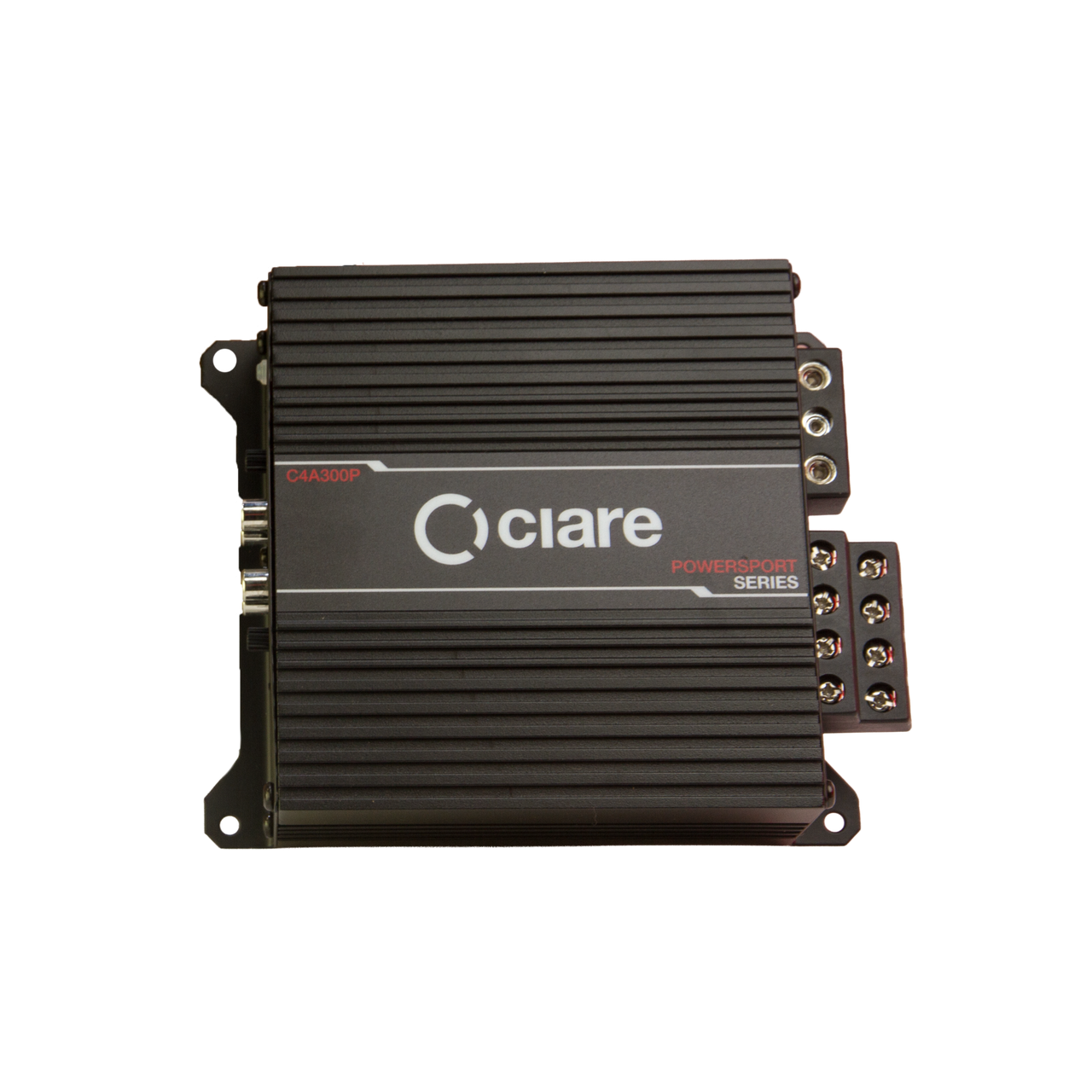

CIARE C4A300PS 4 x 300W Powersport Series Full Range Bridgeable Class D Powersport Amplifier

Ciare’s C4A300PS Powersport Series amplifier is purpose-built to power four channels of speakers in a super-compact chassis that fits in most modern motorcycle tour packs, trunks… even many cycle or Slingshot fairings with minor modifications.

Up to 300W per channel (when connected to a 2Ω load) is available to drive most all of your system’s speakers with ease. Even when connecting to higher impedance speakers, the C4A300PS supplies almost 200W of power into four 4Ω loads and 1200W (2 x 600W) when bridged at 4Ω.

Variable controls come standard for input gain (input sensitivity is 0.2V to 2V). Fixed, switchable 80 Hz low-pass or high-pass filters (12 dB/octave) are available per each channel group (1 & 2, 3 & 4) to designate each channel pair for subwoofer use, full range use, or midbass use.

Due to the high current/amperage potential of this amplifier, a 60A fuse is recommended to be installed within 12” of the battery cable. For best performance, a 12V, 60 Ah is recommended.

Key Features

• Maximum power in minimum space, 7" x 5-1/2" x 2.5" (length x width x depth)
• Perfect power solution for motorcycle and Slingshot competition audio systems
• Audio Precision® certified 29

stable 4 x 300W Class D amplifier

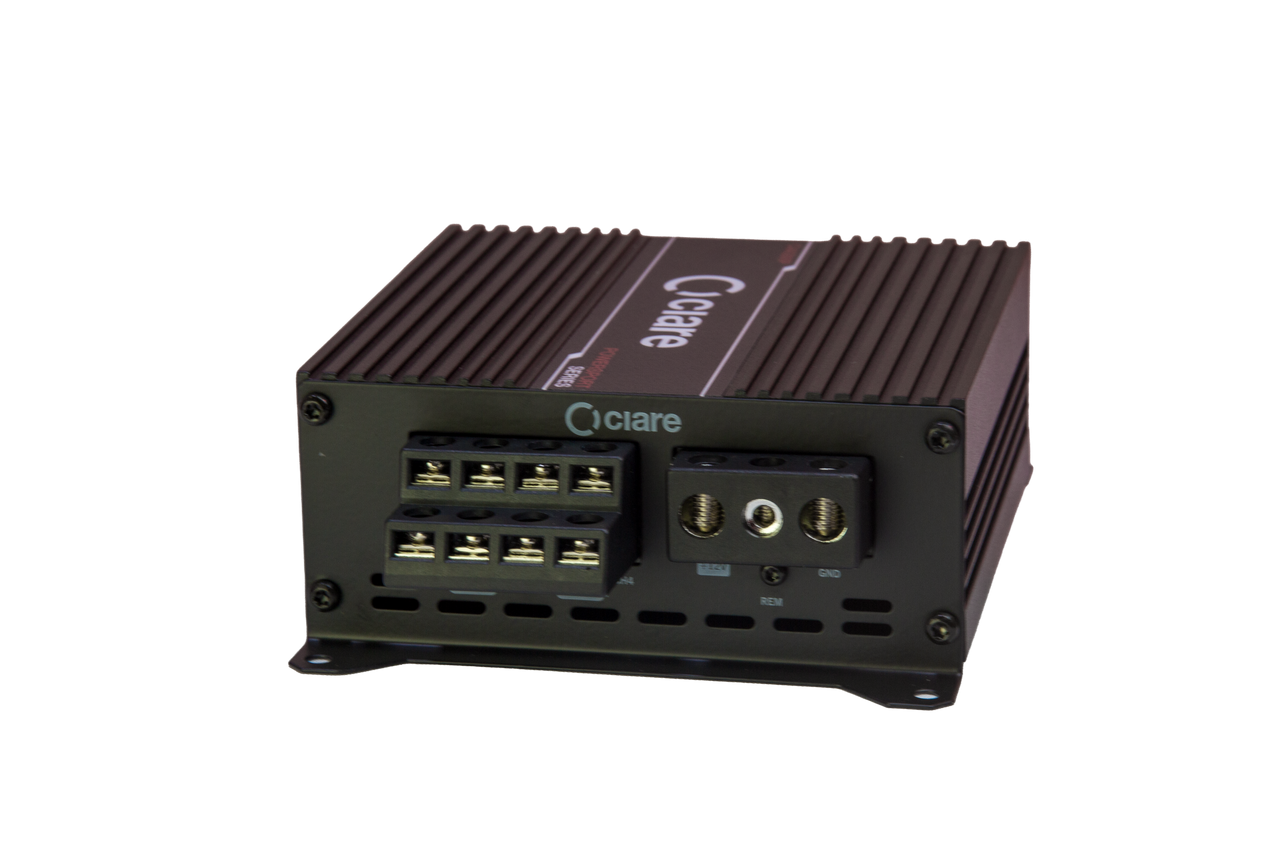

• 5 AWG power and ground input terminals, 14 AWG speaker output terminals

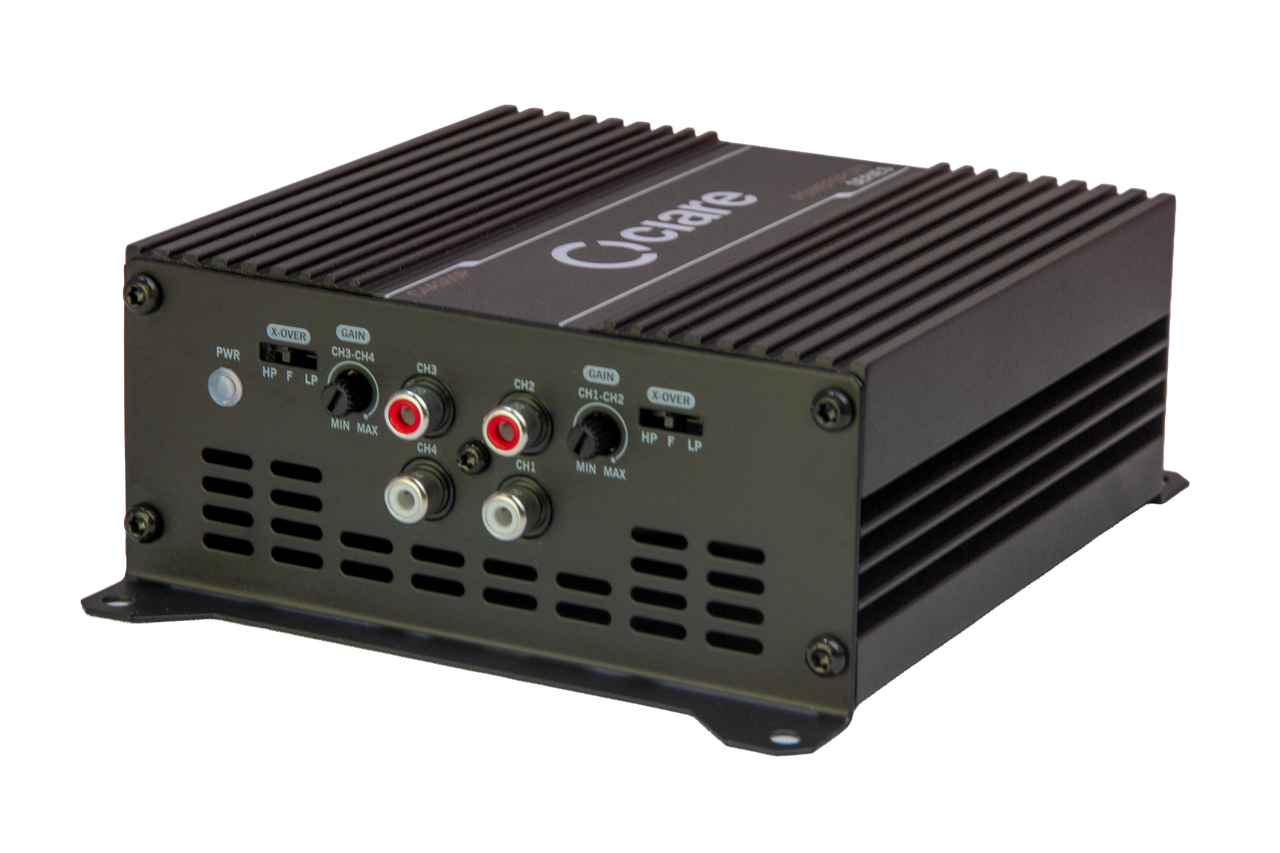

• Variable gain, and switchable 80 Hz low-pass/high-pass filters

Tech Specs

• RMS Power @ 22: 4 x 300W
• RMS Power @

42: 4 x 198W

• Bridged Power @ 40:2 x 600W
• Frequency Response: 5Hz -
  22KHz
• Operating Voltage: 10V - 16V
• Signal-to-Noise Ratio: 87dB
• Input Sensitivity (RCA): 0.2V - 2V
• Total Efficiency: 81%
• Damping Factor: 200
• Low Pass Filter: 80Hz (12dB/oct)
• High Pass Filter: 80Hz (12dB/oct)
• Current Draw (Music): 59A
• Current Draw (Max): 118A
• Recommended Fuse: 60A
• Minimum Recommended Battery:
  60Ah

• Power Cable: 16mm2 (5 AWG)
• Speaker Cable: 2mm2 (14 AWG)
• Remote Cable: 1.5mm2 (15 AWG)
• Minimum Impedance: 29 per channel / 42 bridged

All specs based on 14.4V at 1% THD.

Mounting & Shipping

• Dimensions (L x W x D): 6.8" x
  5.3" x 2.2"
• Weight: 2.4 lbs
